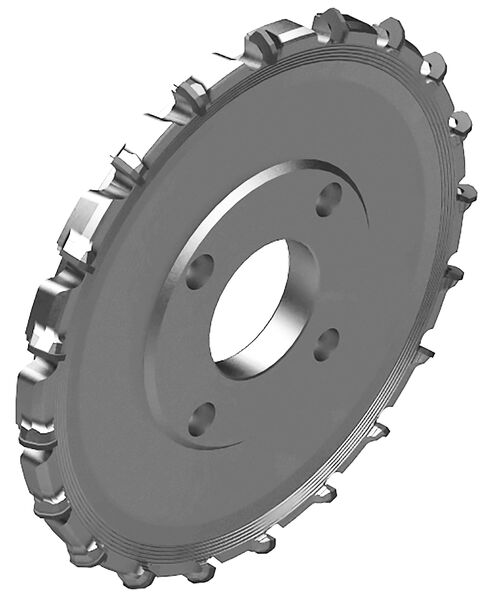

PowerTec 5s airFace Hoggers DP for LEUCO s-System Ø 160 mm and Ø 192 mm (DZ)
Product
Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- double end tenoners
- ideally suited for chip-free and low-noise sizing of raw, melamine-coated, paper-laminated, foil-coated and veneered wood-based materials as well as HPL materials, with a focus on durability and economic efficiency
Design
- LEUCO airFace design: reduced vibration and aerodynamic properties
- polished cutting edges for optimum cutting quality
- division of cut into with rounded edges on one wing
- resharpening area 4 mm
- n max= 7,200 rpm
Advantages
- extremely long edge live thanks to optimized tooth shape and reinforced DP cutting edges
- noise reduction during idling and machining thanks to airFace design
- cutting width and diameter consistency over the entire tool life
- high feed rates achievable
- low total cost/running meter ratio
- machining of panels from 8 mm thickness possible
- good chip removal
- compatible with a wide variety of clamping systems
Notes
- for double hogging process (DZ)
- application with feed
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z |
Feed DZ
[m/min] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 250 | 10 | 17.8 | 60 | 16 | 28 | R | 80477119 | ||
| 250 | 10 | 17.8 | 60 | 16 | 28 | L | 80477120 | ||
| 250 | 10 | 17.8 | 60 | 20 | 45 | R | 80477121 | ||
| 250 | 10 | 17.8 | 60 | 20 | 45 | L | 80477122 | ||
| 250 | 10 | 17.8 | 60 | 28 | 60 | R | 80477123 | ||
| 250 | 10 | 17.8 | 60 | 28 | 60 | L | 80477124 | ||
| 250 | 10 | 17.8 | 60 | 36 | 80 | R | 80477125 | ||
| 250 | 10 | 17.8 | 60 | 36 | 80 | L | 80477126 | ||
| 250 | 14,5 | 17.8 | 60 | 16+4 | 28 | R | 80477127 | ||
| 250 | 14,5 | 17.8 | 60 | 16+4 | 28 | L | 80477128 | ||
| 250 | 14,5 | 17.8 | 60 | 20+5 | 45 | R | 80477129 | ||
| 250 | 14,5 | 17.8 | 60 | 20+5 | 45 | L | 80477130 | ||
| 250 | 14,5 | 17.8 | 60 | 28+7 | 60 | R | 80477131 | ||
| 250 | 14,5 | 17.8 | 60 | 28+7 | 60 | L | 80477132 | ||
| 250 | 14,5 | 17.8 | 60 | 36+9 | 80 | R | 80477133 | ||
| 250 | 14,5 | 17.8 | 60 | 36+9 | 80 | L | 80477134 | ||
| 250 | 10 | 17.8 | 80 | 16 | 28 | R | 80477135 | ||
| 250 | 10 | 17.8 | 80 | 16 | 28 | L | 80477136 | ||
| 250 | 10 | 17.8 | 80 | 20 | 45 | R | 80477137 | ||
| 250 | 10 | 17.8 | 80 | 20 | 45 | L | 80477138 | ||
| 250 | 10 | 17.8 | 80 | 28 | 60 | L | 80490648 | ||
| 250 | 10 | 17.8 | 80 | 28 | 60 | R | 80490649 | ||
| 250 | 14,5 | 17.8 | 80 | 20+5 | 28 | R | 80477139 | ||
| 250 | 14,5 | 17.8 | 80 | 20+5 | 28 | L | 80477140 | ||
