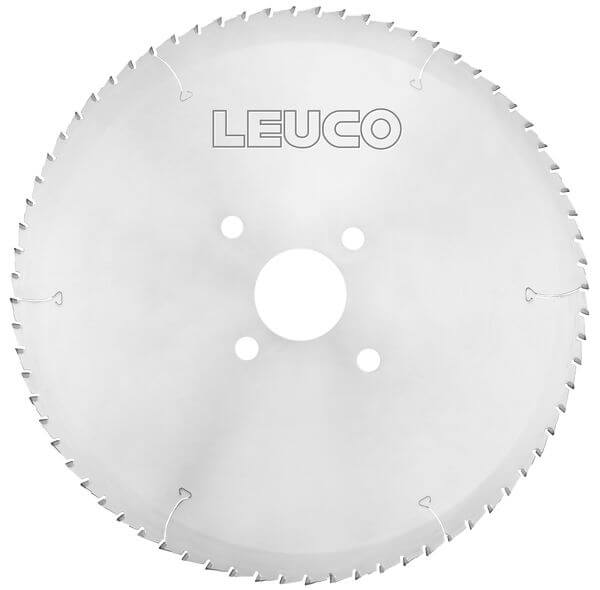

193103 - Panel Sizing Saw Blades DP - nn-System
Product
Drawing
-
-
- Polycrystalline diamond [DP]
-
Technical data
Description
Machine / Application
- panel sizing saws
- for sizing cuts in raw and plastic-laminated panels
Design
- special NoNoise gullet geometry
- diamond cutting edges with polished design
- LEUCODIA tipping quality
Advantages
- especially low noise level
- noise reduction by approx. 6 dB(A) when idling
- for each application case the correct tooth form
Notes
- further dimensions and tooth forms on request
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 308 [mm] | |
| B = Cutting width | 3,2 [mm] | |
| b = Body thickness | 2.4 [mm] | |
| Ø d = Bore diameter | 60 [mm] | |
| Z = No. of teeth | 96 | |
| Hook angle = Hook angle | 10 [°] | |

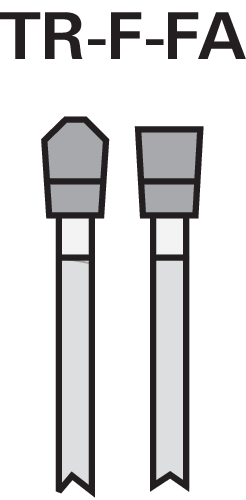

| Tooth geometry = Tooth configuration | TR-F-FA | |
| L = Delivery Status | ||
| Machine/Type | Homag HPS 320 | |
|
Dimensions entered are not listed?
available from stock |
||
suitable scoring saw blade
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Scoring Saw Blades DP "KO-F" | Ø220x3,4 - 4,2xØ45 Z=60 | 193105 | ||
|
available from stock |
|||||
