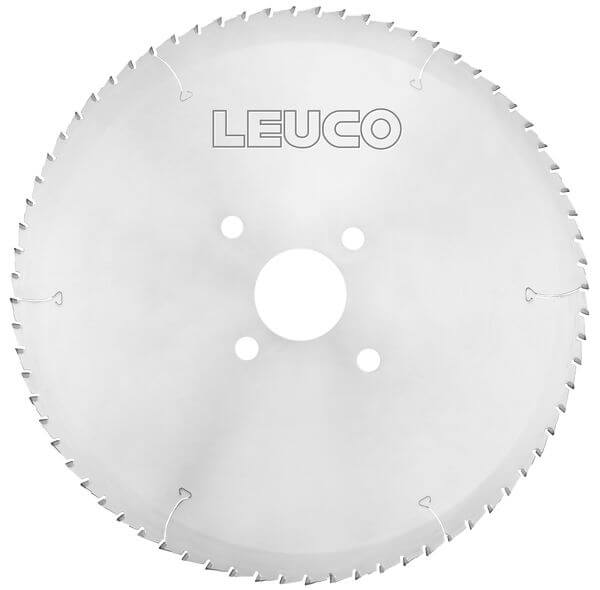

Panel Sizing Saw Blades DP "TR-F-FA" - nn-System

Product

Drawing

  • Polycrystalline diamond [DP]

Article

Description

Machine / Application

  • panel sizing saws
  • for sizing cuts in raw and plastic-laminated panels

Design

  • special NoNoise gullet geometry
  • diamond cutting edges with polished design
  • LEUCODIA tipping quality

Advantages

  • especially low noise level
  • noise reduction by approx. 6 dB(A) when idling
  • for each application case the correct tooth form

Notes

  • further dimensions and tooth forms on request

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z Hook angle
[°] 		Tooth geometry Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

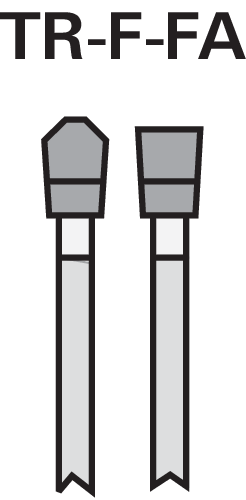

308 3,2 2.4 60 96 10 TR-F-FA Homag HPS 320 193103
|
