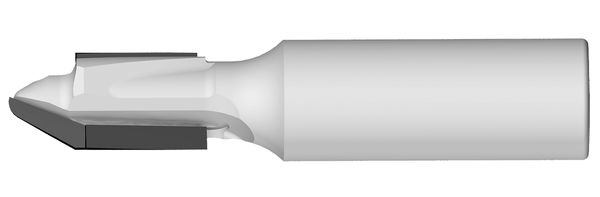

Multi-purpose shank-type cutting jointer DP - for solid core panel machining

Product

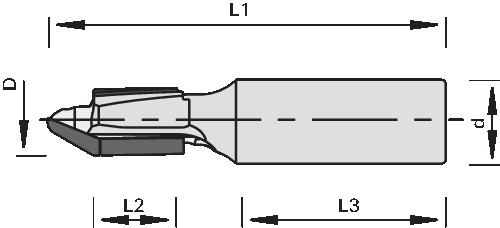

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • CNC routers
  • for jointing without overlap marks, sizing and milling of cutouts in plastic solid core panels (e.g. Trespa®, Corian®, Varicor®, LG-HiMacs, etc.) and fiber cement boards

Design

  • special PCD type in topline design
  • with alternating shear angle and DP plunge tip

Advantages

  • flexible multi-function tool
  • vertical boring and through-drilling
  • milling of any hole diameters >Ø16 mm and cutouts
  • profile grooves 60° with R=3 mm
  • Chamfering of edges 30°
  • only 1 tool change location required

Notes

  • Clamping elements: ps-System, TRIBOS, heat-shrinking chuck

Table- and picture caption ...

Ø D
[mm]
L2
[mm]
Ø d
[mm]
L3
[mm]
L1
[mm]
Z nmax
[min-1]
L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

16 20 20 48 95 2+1 24,000 R 187373
|
