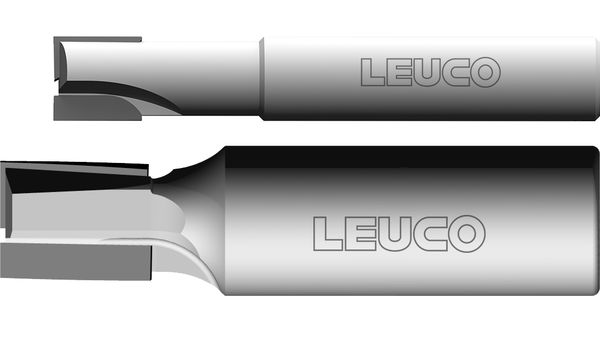

High-Performance Shank-Type Cutters DP - for the machining of solid core panels
Product

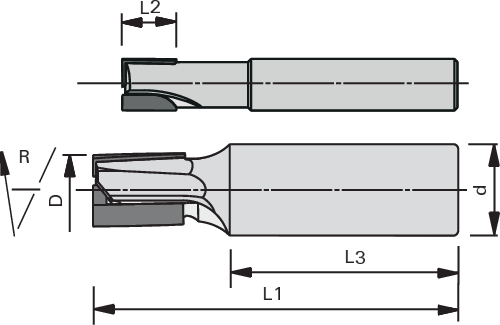

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- CNC routers
- for jointing and sizing without overlap marks in solid woods and wood-based panels
- especially suited for the machining of plastic solid core panels (e.g. Trespa®, Corian®, Varicor®, LG-HiMacs, etc.)
Design
- high-performance tool for pre- and finish-milling
- Ø D = 8 mm - Ø D = 10 mm solid carbide design of tool body
- Ø D > 10 mm tool body made from steel
- with face shear angles
- with DP plunging tip
- face cutting for diagonal plunge-cutting
- polished face
- n max = 24.000 min-1
Advantages
Notes
- Clamping elements: ps-System, TRIBOS, draw-in collet chuck, heat-shrinking chuck
- Ø D > 10 mm with thread for length adjusting screw
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
Resharpening area
[mm] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 8 | 10 | 10 | 40 | 65 | 1+1 | 24,000 | 0.5 | R | 187261 | ||
| 10 | 10 | 10 | 40 | 65 | 1+1 | 24,000 | 0.6 | R | 187262 | ||
| 12 | 15 | 16 | 45 | 75 | 2+1 | 24,000 | 1 | R | 186436 | ||
| 12 | 15 | 16 | 45 | 75 | 3+1 | 24,000 | 1 | R | 186305 | ||
| 12 | 22 | 16 | 45 | 75 | 2+1 | 24,000 | 1 | R | 186437 | ||
| 14 | 28 | 16 | 45 | 80 | 2+1 | 24,000 | 1.5 | R | 186438 | ||
| 16 | 20 | 20 | 50 | 80 | 2+1 | 24,000 | 2.8 | R | 186439 | ||
| 16 | 20 | 20 | 50 | 80 | 3+1 | 24,000 | 1.6 | R | 186431 | ||
