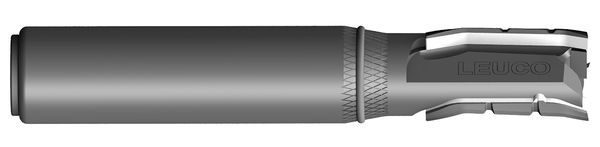

DIACURVE Shank-Type Cutters DP Nesting
Product

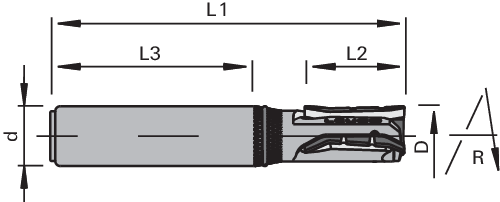

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- CNC routers
- for panel sizing with Nesting Technology
- processing of raw and laminated wood-based materials
Design
- unique cutting edge design
- One-way tool (not resharpenable)
- large, continuous gullets with alternating shear angles
- with DP plunge tip for diagonal plunge-cutting
- Soft chip breaker grooves, exception 187691
Advantages
- high cutting quality and high-quality cutting edges on both sides thanks to specially adapted arrangement of cutting edges
- favorable purchase price
- constant cutting diameter (user-friendly since no diameter corrections are necessary)
- no division of cut
- no undesirable lines
- no chip congestion
Notes
- clamping elements: use in high-precision clamping elements recommended (e.g. TRIBOS, ps-System)
- Z=2 solid wood
- adapt the cutting length to the panel thickness (H)!
|
Ø D
[mm] |
Ø D
[inch] |
L2
[mm] |
Ø d
[mm] |

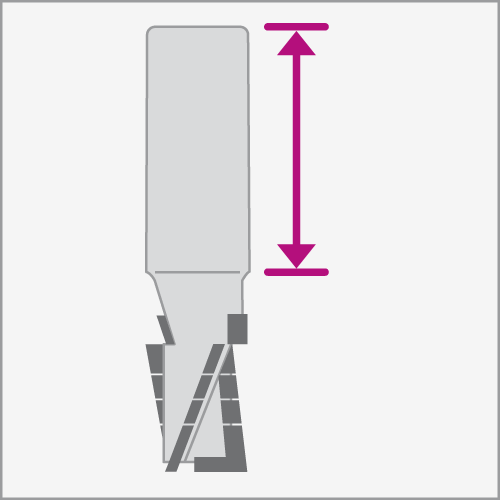

L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
H
[mm] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 12 | 16 | 12 | 40 | 65 | 2 | 24,000 | 12-15 | R | 187687 | |||
| 12 | 20 | 12 | 40 | 70 | 3 | 24,000 | 16-19 | R | 187688 | |||
| 12 | 20 | 12 | 40 | 70 | 4 | 24,000 | 16-19 | R | 187689 | |||
| 12 | 26 | 12 | 40 | 75 | 3 | 24,000 | 22-25 | R | 187690 | |||
| 9.53 | 3/8 | 20 | 12 | 40 | 70 | 3 | 24,000 | 16-19 | R | 187691 | ||
