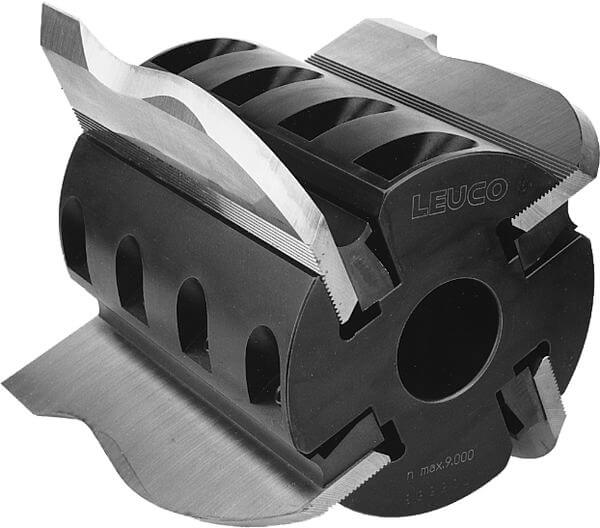

179217 - Profile Cutterheads
Product

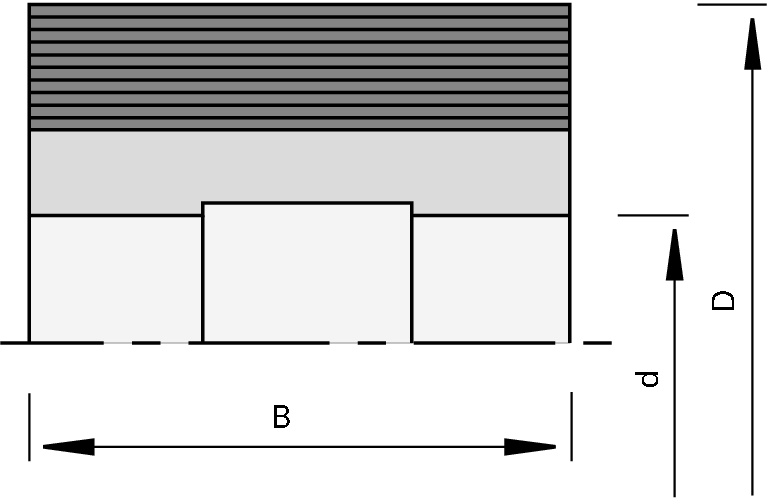

Drawing
- MEC
Technical data
Description
Machine / Application
- molders
- for profiling of solid woods
Design
- hook angle 25 degrees
Advantages
- high profile accuracy and surface quality thanks to knives sharpened in the cutterhead
Notes
- precise serration (60 degrees, 1.6 mm pitch) ensures tight knife clamping
- adjustable knives
- profile depth and cutting circle Ø see table
- for back-serrated blanks S = 5, 8, 10 mm
- included in delivery: cutterhead and wedges; for blanks see chapter Turnover knives, Profile Knives, Knives
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 137 [mm] | |
| B = Cutting width | 80 [mm] | |
| Ø d = Bore diameter | 50 [mm] | |
| Z = No. of teeth | 4 | |
| Hook angle = Hook angle | 25 [°] | |
| nmax = maximum RPM | 8,000 [min-1] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
| Pressure Bars | B=80 | 179223 | |||
| Dummy Pieces | 80x20x8 | 179231 | |||
|
Screwdrivers with sliding handle for hexagon socket | SW5x150 | 168703 | ||
|
Set Screws - with hexagon socket and dog point | M10x20 DIN EN ISO 4028 | 815807 | ||
|
available from stock |
|||||
