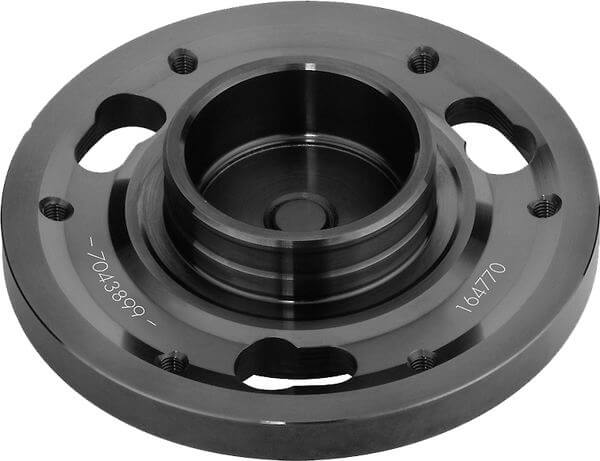

Mounting Flanges for Clamping System Ø 110 mm - saw blades d=65 mm
Article
Description
Machine / Application
- for the mounting of saw blades up to Ø 250 mm with bore Ø 65 mm, 6 countersunk holes TK 90 mm for screw M 5
Design
Advantages
Notes
- for clockwise and counter-clockwise rotation
- especially suited for the mounting of scoring saw blades
- at least two separate tool/flange assemblies should be used per clamping element (reduced downtimes)
- for DP circular saw blades the cylindrical head screw Ident-No. 001869 is necessary (to be ordered separately)
Ø d1
[mm] |
L2
[mm] |
L
[mm] |
Ø D
[mm] |
L1
[mm] |
Machine/Type | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||
65 | 2,5 | 10 | 110 | 27 | Homag, IMA | 164758 | ||
65 | 2,5 | 10 | 110 | 27 | Homag, IMA | 164770 |
