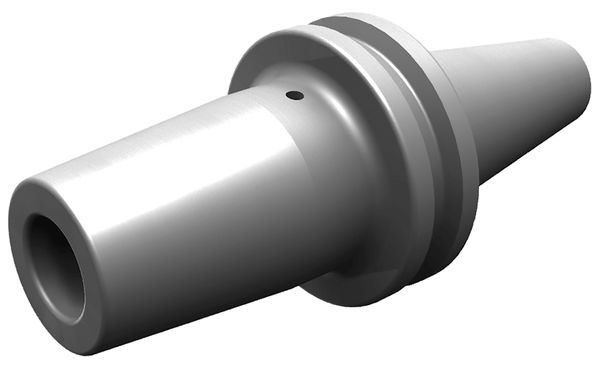

Heat-Shrinking Chucks with SK shank
Product
Drawing
Article
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for precise clamping of shank-type tools with cylindrical shank
Design
- n max = 30,000 min-1
- interface DIN ISO 7388-1 SK 30 AD
- from high-quality hot work tool steel
Advantages
- increased process safety, long edge lives and high machining quality thanks to very high concentricity and repeating accuracy (< 0.003 mm)
Notes
- for clockwise and counter-clockwise rotation
- can be clamped and unclamped with all conventional shrinking devices
- delivery without retaining bolts
|
Ø d1
[mm] |
L2
[mm] |
Ø d
[mm] |
Ø D
[mm] |
L1
[mm] |
a
[mm] |
Weight
[kg] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 12 | 47 | SK 30 | 34 | 117.8 | 70 | 0.64 | 187214 | ||
| 16 | 51 | SK 30 | 34 | 117.8 | 70 | 0.61 | 187215 | ||
| 20 | 51 | SK 30 | 42 | 117.8 | 70 | 0.72 | 187216 | ||
