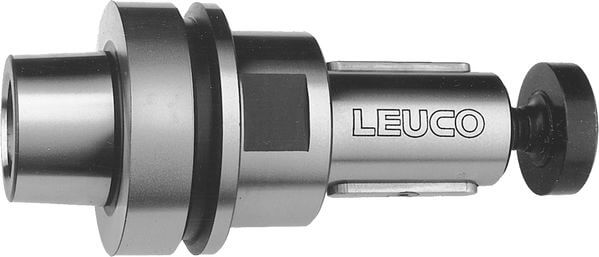

183747 - Mounting Arbors with HSK shank
Product

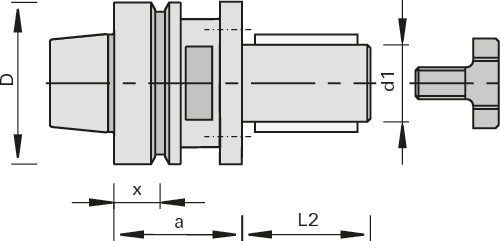

Drawing
Technical data
Description
Machine / Application
- CNC machining centers with automatic tool changer
- for precise mounting of tools with bore with double keyway
Design
- with 6 pin holes M6 - 8 mm deep TK 48 mm
- interface DIN 69893 HSK 63 F
- clamping length L2 = 50 mm for multiple-part cutters and cutterheads
- secured against rotation with double key
Advantages
- high feed rates thanks to optimum torque transfer
Notes
- for clockwise and counter-clockwise rotation
- spacer ring Ident-No. 181193 consists of: 1 piece 20 mm thick, 1 piece 10 mm thick, 3 piece 5 mm thick, 2 piece 2 mm thick, 1 piece 1 mm thick
- spacer ring set Ident-No. 181194 additionally 1 piece 20 mm thick, 1 piece 10 mm thick
- tool attached with retaining bolt
- included in delivery: clamping arbor with retaining bolt
| Feature | Value | |
|---|---|---|
| Ø d1 = Adapter size on the tool side | 30 [mm] | |
| L2 = Effective length | 110 [mm] | |
| Ø d = Adapter size on the machine side | HSK 63F [mm] | |
| Ø D = Diameter | 63 [mm] | |
| Norm number = Norm number | DIN 69893 | |
| a = Distance to machine | 45 [mm] | |
| x = Distance to machine | 18 [mm] | |
| DKN = Double keyway | 8x3 [mm] | |
| Weight = Weight | 1.8 [kg] | |
| L = Delivery Status | ||
| Machine/Type | Homag, IMA from 01/95, HOLZ-HER | |
| Remarks | x=18 mm | |
|
Dimensions entered are not listed?
available from stock |
||
