Heat-Shrinking Chucks - joinery machines

Product

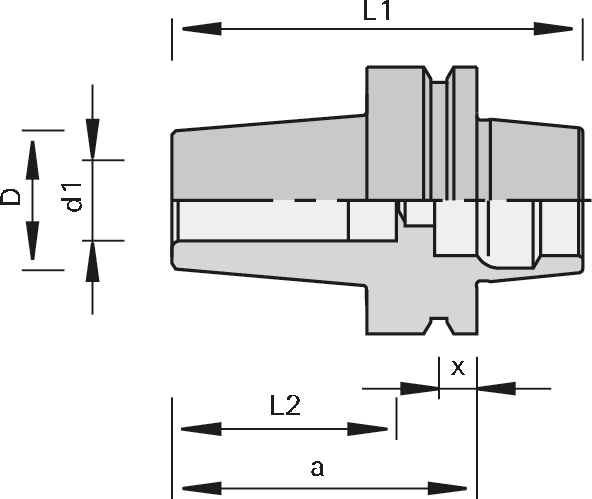

Drawing

Article

Description

Machine / Application

  • joinery machines
  • for precise clamping of shank-type tools with cylindrical shank and reduced Hundegger shaft

Design

  • n max = 30,000 min-1
  • interface DIN 69893 HSK 63F, HSK 63E, HSK 80A, HSK 80E, HSK 80F, HSK 100A
  • from high-quality hot work tool steel

Advantages

  • increased process safety, long edge lives and high machining quality thanks to very high concentricity and repeating accuracy (< 0.003 mm)

Notes

  • for clockwise and counter-clockwise rotation
  • can be clamped and unclamped with all conventional shrinking devices

Table- and picture caption ...

Ø d1
[mm] 		L2
[mm] 		Ø d
[mm] 		Ø D
[mm] 		L1
[mm] 		a
[mm] 		x
[mm] 		Weight
[kg] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

20 52 HSK 63E 33 112 80 18 1.5 80483321
|
20 52 HSK 63E 33 112 85 18 1.6 80483322
|
20 52 HSK 63E 33 132 100 18 1.2 80483319
|
20 52 HSK 63E 33 192 160 18 1.8 80483305
|
20 52 HSK 63E 33 207 175 18 2.5 80483323
|
25 58 HSK 63E 44 112 85 18 1.6 80483341
|
25 58 HSK 63E 44 147 115 18 1.8 80483334
|
25 58 HSK 63E 44 192 160 18 2.5 80483313
|
30 62 HSK 63E 44 132 100 18 1.5 80483361
|
30 62 HSK 63E 44 177 145 18 3.6 80483362
|
30 62 HSK 63E 44 217 185 18 2.8 80483363
|
30 62 HSK 63E 44 242 210 18 2.8 80483364
|
20 52 HSK 63F 33 100 75 18 0.9 80483302
|
20 52 HSK 63F 33 185 160 18 1.8 80483301
|
20 52 HSK 63F 33 210 185 18 2.6 80483320
|
25 58 HSK 63F 44 100 75 18 1 80483311
|
25 58 HSK 63F 44 160 135 18 3 80483335
|
25 58 HSK 63F 44 185 160 18 2.5 80483332
|
25 58 HSK 63F 44 210 185 18 2.7 80483336
|
25 58 HSK 63F 44 225 200 18 3.2 80483310
|
30 62 HSK 63F 44 100 75 18 0.9 80483317
|
30 62 HSK 63F 44 120 95 18 1.7 80483355
|
30 62 HSK 63F 44 225 200 18 3.2 80483354
|
20 52 HSK 80A 33 145 105 18 1.6 80483306
|
20 52 HSK 80A 33 200 160 18 2.2 80483307
|
20 52 HSK 80A 33 240 200 18 2.6 80483308
|
25 58 HSK 80A 44 155 115 18 2.2 80483314
|
25 58 HSK 80A 44 200 160 18 2.9 80483352
|
25 58 HSK 80A 44 240 200 18 3.5 80483353
|
30 62 HSK 80A 44 115 75 18 1.6 80483368
|
30 62 HSK 80A 44 135 95 18 1.8 80483369
|
30 62 HSK 80A 44 135 95 18 1.7 80483378
|
30 62 HSK 80A 44 152 112 18 2.1 80483370
|
30 62 HSK 80A 44 185 145 18 3.8 80483371
|
30 62 HSK 80A 44 215 175 18 4.1 80483372
|
30 62 HSK 80A 44 225 185 18 4.3 80483373
|
30 62 HSK 80A 44 245 205 18 4.5 80483374
|
40 62 HSK 80A 58 135 95 18 2 80483379
|
20 52 HSK 80E 33 115 75 18 1.4 80483324
|
20 52 HSK 80E 33 225 185 18 3 80483325
|
25 58 HSK 80E 44 115 75 18 1.5 80483342
|
25 58 HSK 80E 44 160 120 18 3 80483343
|
25 58 HSK 80E 44 225 185 18 3.8 80483344
|
25 58 HSK 80E 44 245 205 18 4.5 80483345
|
30 62 HSK 80E 44 115 75 18 1.6 80483365
|
30 62 HSK 80E 44 225 185 18 3 80483366
|
30 62 HSK 80E 44 245 205 18 3.1 80483367
|
20 52 HSK 80F 33 112 80 18 1.4 80483303
|
20 52 HSK 80F 33 192 160 18 2.2 80483304
|
25 58 HSK 80F 44 112 80 18 1.5 80483333
|
25 58 HSK 80F 44 117 85 18 1.6 80483337
|
25 58 HSK 80F 44 177 145 18 3.4 80483338
|
25 58 HSK 80F 44 192 160 18 2.9 80483312
|
25 58 HSK 80F 44 207 175 18 2.4 80483339
|
25 58 HSK 80F 44 237 205 18 2.5 80483340
|
30 62 HSK 80F 44 107 75 18 1.2 80483356
|
30 62 HSK 80F 44 144 112 18 1.8 80483357
|
30 62 HSK 80F 44 207 175 18 2.5 80483358
|
30 62 HSK 80F 44 217 185 18 2.8 80483359
|
30 62 HSK 80F 44 237 205 18 3.2 80483360
|
20 52 HSK 100A 33 125 75 18 1.8 80483326
|
20 52 HSK 100A 33 135 85 18 1.7 80483327
|
20 52 HSK 100A 33 155 105 18 2.5 80483331
|
20 52 HSK 100A 33 195 145 18 4 80483328
|
20 52 HSK 100A 33 210 160 18 3.1 80483309
|
20 52 HSK100A 33 225 175 18 2.7 80483329
|
20 52 HSK 100A 33 235 185 18 2.8 80483330
|
25 58 HSK 100A 44 125 75 18 1.8 80483346
|
25 58 HSK 100A 44 145 90 18 1.8 80483347
|
25 58 HSK 100A 44 165 115 18 3 80483315
|
25 58 HSK 100A 44 195 145 18 4 80483348
|
25 58 HSK 100A 44 210 160 18 3.7 80483316
|
25 58 HSK 100A 44 225 175 18 4.5 80483349
|
25 58 HSK 100A 44 235 185 18 2.9 80483350
|
25 58 HSK 100A 44 255 205 18 3.7 80483351
|
30 62 HSK 100A 44 125 75 18 1.9 80483375
|
30 62 HSK 100A 44 195 145 18 4 80483376
|
30 62 HSK 100A 44 235 185 18 3 80483377
|
40 90 HSK 100A 90 200 150 18 6.4 80483318
|
