80252292 - Thin-Kerf Saw Blades HW for parquet manufacturing
Product

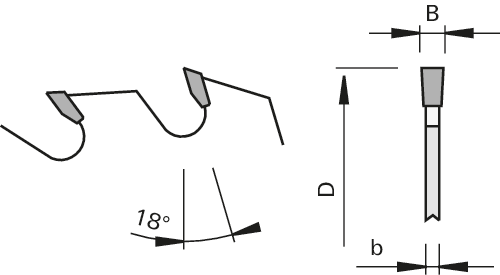

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- molders
- splitting machines
- for precise dividing cuts in trimmed solid woods
Design
- specially treated tool body with Oxytop coating
- tooth configuration:
- flat "F" for european hard woods (oak, beech, ...)
- alternate top bevel "WS"for exotic woods
- cutting material: HW HL Board 06 plus
Advantages
- optimum wood yield thanks to thin kerfs
Notes

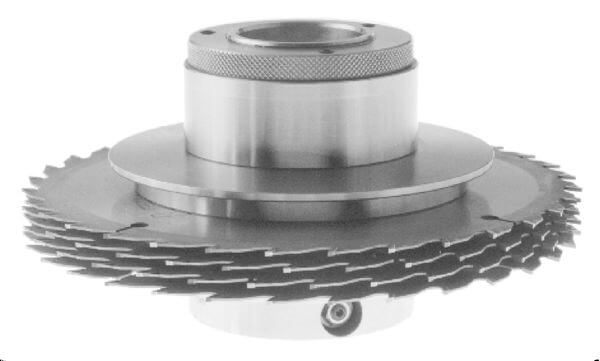

- also suitable for Hydro clamping bushing
- bore extension to d=65 mm of edge saw blade for Schröder
- packing unit 10 pieces
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 220 [mm] | |
| B = Cutting width | 3,8/3,5 [mm] | |
| b = Body thickness | 3 [mm] | |
| Ø d = Bore diameter | 60 [mm] | |
| Z = No. of teeth | 30 | |
| NL = Pin holes | 3/10/74 + 3/11/80 | |
| Hook angle = Hook angle | 18 [°] | |
| Tooth geometry = Tooth configuration | F | |
| Dimension | 220x3,8/3,0x60 Z=30 F [mm] | |
| LEUCODUR = Cutting material | HL Board 06 plus | |
| L = Delivery Status | ||
| Machine/Type | Weinig, Schröder | |
|
Dimensions entered are not listed?
available from stock |
||
