188497 - Scoring Saw Blades HW "WS-FA"
Product

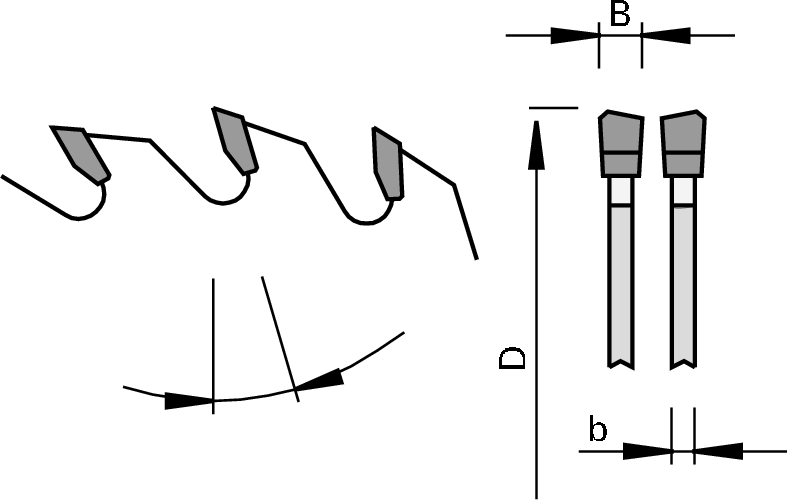

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- panel sizing saws with controllable scoring device
- for scoring of plastic-laminated postforming panels
Design
- tooth configuration: alternate top bevel with chamfer "WS-FA"
- cutting material: HW HL Board 06
Advantages
Notes
- cutting width consistently .2 mm wider than the main saw kerf
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 300 [mm] | |
| B = Cutting width | 4,6 [mm] | |
| b = Body thickness | 3.2 [mm] | |
| Ø d = Bore diameter | 65 [mm] | |
| Z = No. of teeth | 72 | |
| NL = Pin holes | 2/8,4/110 + 2/9/100 | |
| Hook angle = Hook angle | 8 [°] | |
| Corner∡ = Corner angle | 5 [°] | |
| Tooth geometry = Tooth configuration | WS-FA | |
| LEUCODUR = Cutting material | HL Board 06 | |
| L = Delivery Status | ||
| Machine/Type | Selco | |
|
Dimensions entered are not listed?
available from stock |
||
suitable main saw blade
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø450x4,6xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192838 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø430x4,6xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192836 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø400x4,6xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192834 | ||
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø300x4,4xØ65 Z=60 NL/DKN= 2/9/100 + 2/9/110 | 193279 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø400x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193281 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø355x4,4xØ60 Z=72 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 192826 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø450x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192930 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø380x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193280 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø355x4,4xØ65 Z=72 NL/DKN= 2/9/110 | 193098 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø430x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193282 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø400x4,6xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 192832 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø355x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192913 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø380x4,8xØ60 Z=54 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 192829 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø360x4,4xØ65 Z=72 NL/DKN= 2/9/110 | 192914 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø320x4,4xØ65 Z=60 NL/DKN= 2/9/110 | 192906 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø430x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192928 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø480x4,8xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 192939 | ||
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø450x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 193172 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø400x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 193164 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø300x4,4xØ65 Z=60 NL/DKN= 2/9/110 | 193138 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø430x4,4xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 193168 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø400x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193284 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø480x4,8xØ80 Z=72 NL/DKN= 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 193184 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø320x4,4xØ65 Z=60 NL/DKN= 2/9/110 | 193143 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø380x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193283 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø430x4,4xØ65 Z=72 NL/DKN= 2/9/100 + 2/9/110 | 193285 | ||
|
available from stock |
|||||
