Clipping Saw Blades HW for edge trimming - adjustable "ES"
Article
Description
Machine / Application
- edge banders
- edge trimming machines Homag, Brandt, Raimann, Reich, Ott, SCM-Stefani
- for trimming and chamfering of plastic-, veneer- and solid wood edges
Design
- positive hook angle
- L - left hand bevel "ES-L" / R - right hand bevel "ES-R"
- cutting material: HW HL Board 06
Advantages
Notes
- LEUCODUR HW

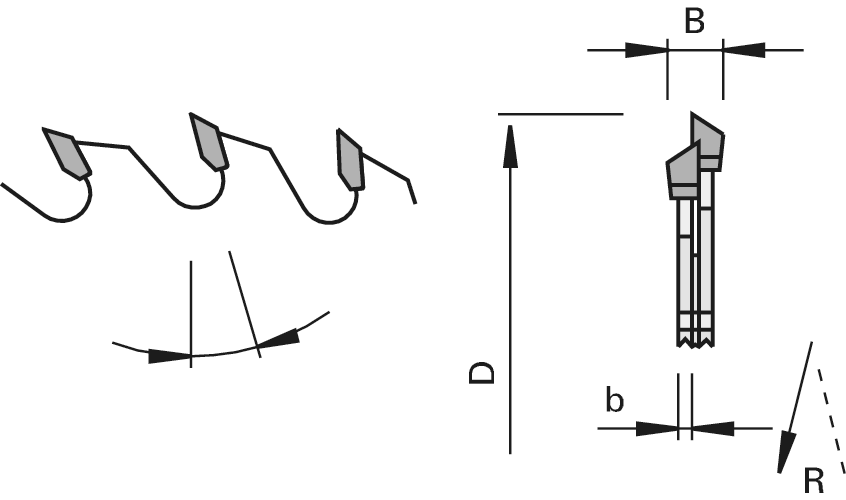

- sense of rotation see drawing
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
L/R |
Shear∡
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
||||||||||||||
100 | 5,8 | 2.2 | 32 | 2x20 | 8 | L | 5 | ES | HL Board 06 | 169980 | ||||
100 | 5,8 | 2.2 | 32 | 2x20 | 8 | R | 5 | ES | HL Board 06 | 169983 | ||||
125 | 6,2 | 2 | 30 | 2x20 | 2/3,1/42 | 10 | L | 0 | ES-L | HL Board 06 | SCM-Stefani | 189329 | ||
125 | 6,2 | 2 | 30 | 2x20 | 2/3,1/42 | 10 | R | 0 | ES-L | HL Board 06 | SCM-Stefani | 189332 |
