183064 - Boring Spikes with solid carbide body
Product

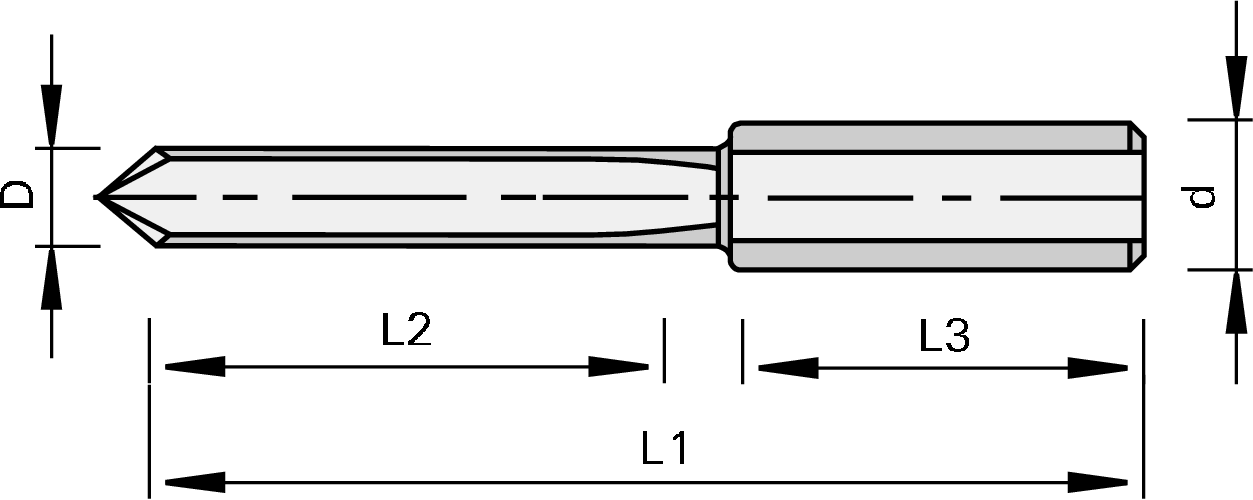

Drawing
-
- Solid Tungsten Carbide
- MAN
Technical data
Description
Machine / Application
- automatic boring machines
- CNC machining centers
- for drilling of dowel holes in wood-based panels
Design
- cylindrical shank Ø 10 mm with clamping surface and adjusting screw
- solid carbide design
Advantages
- large resharpenable area
- long edge lives
Notes
- for clockwise and counter-clockwise rotation
- clamping element: combi chuck, quick-clamping chuck
| Feature | Value | |
|---|---|---|
| Ø D = Bore diameter | 4 [mm] | |
| L2 = Effective length | 32 [mm] | |
| Ø d = Shank diameter | 10 [mm] | |
| L3 = Shank length | 25 [mm] | |
| L1 = Total length | 70 [mm] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
