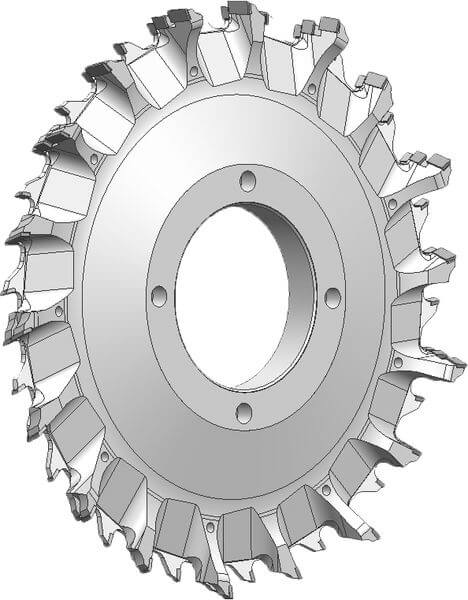

Compact Hogger DP - for dividing laminate boards

Product

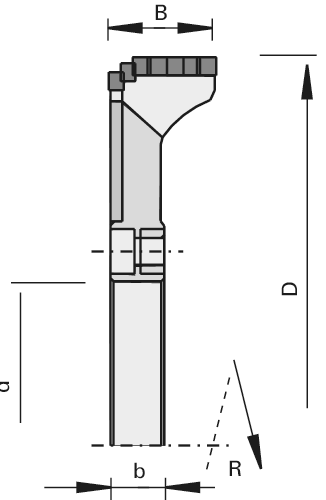

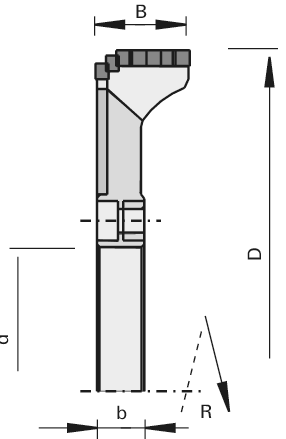

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • panel sizing saws

  • laminate flooring

Design

  • open gullet
  • with shear angle
  • resharpening area 4 mm

Advantages

  • improved chip evacuation thanks to shear angle
  • optimal positioning of knives from hogger to saw blade
  • reduction of scouring on the tool

Notes

  • application against feed for cutting along and across the grain
  • sense of rotation according to DIN-EN 50144

Table- and picture caption ...

Ø D
[mm]
B
[mm]
Ø d
[mm]
Z DKN
[mm]
NL L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

260 18 35 48+24+12+12 10x4 2x4/8/130 L 189737
|
260 18 35 48+24+12+12 10x4 2x4/8/130 R 189738
|
260 25 35 48+24+12+12 10x4 2x4/8/130 L 189739
|
260 25 35 48+24+12+12 10x4 2x4/8/130 R 189740
|
260 36 35 48+24+12+12 10x4 2x4/8/130 L 189741
|
260 36 35 48+24+12+12 10x4 2x4/8/130 R 189742
|
260 18 35 36+18+9+9 10x4 2x4/8/130 L 189743
|
260 18 35 36+18+9+9 10x4 2x4/8/130 R 189744
|
260 25 35 36+18+9+9 10x4 2x4/8/130 L 189745
|
260 25 35 36+18+9+9 10x4 2x4/8/130 R 189746
|
260 36 35 36+18+9+9 10x4 2x4/8/130 L 189747
|
260 36 35 36+18+9+9 10x4 2x4/8/130 R 189748
|
260 18 40 48+24+12+12 2x4/8/130 L 189752
|
260 18 40 48+24+12+12 2x4/8/130 R 189753
|
260 25 40 48+24+12+12 2x4/8/130 L 189754
|
260 25 40 48+24+12+12 2x4/8/130 R 189755
|
260 36 40 48+24+12+12 2x4/8/130 L 189756
|
260 36 40 48+24+12+12 2x4/8/130 R 189757
|
260 18 40 36+18+9+9 2x4/8/130 L 189758
|
260 18 40 36+18+9+9 2x4/8/130 R 189759
|
260 25 40 36+18+9+9 2x4/8/130 L 189760
|
260 25 40 36+18+9+9 2x4/8/130 R 189761
|
260 36 40 36+18+9+9 2x4/8/130 L 189762
|
260 36 40 36+18+9+9 2x4/8/130 R 189763
|
260 18 100 48+24+12+12 2x4/8/130 L 189809
|
260 18 100 48+24+12+12 2x4/8/130 R 189810
|
260 25 100 48+24+12+12 2x4/8/130 L 189811
|
260 25 100 48+24+12+12 2x4/8/130 R 189812
|
260 36 100 48+24+12+12 2x4/8/130 L 189813
|
260 36 100 48+24+12+12 2x4/8/130 R 189814
|
260 18 100 36+18+9+9 2x4/8/130 L 189815
|
260 18 100 36+18+9+9 2x4/8/130 R 189816
|
260 25 100 36+18+9+9 2x4/8/130 L 189817
|
260 25 100 36+18+9+9 2x4/8/130 R 189818
|
260 36 100 36+18+9+9 2x4/8/130 L 189819
|
260 36 100 36+18+9+9 2x4/8/130 R 189820
|
260 18 100 48+24+12+12 2x4/8/130 L 189821
|
260 18 100 48+24+12+12 2x4/8/130 R 189822
|
260 25 100 48+24+12+12 2x4/8/130 L 189823
|
260 25 100 48+24+12+12 2x4/8/130 R 189824
|
260 36 100 48+24+12+12 2x4/8/130 L 189825
|
260 36 100 48+24+12+12 2x4/8/130 R 189826
|
260 18 100 36+18+9+9 2x4/8/130 L 189827
|
260 18 100 36+18+9+9 2x4/8/130 R 189828
|
260 25 100 36+18+9+9 2x4/8/130 L 189829
|
260 25 100 36+18+9+9 2x4/8/130 R 189830
|
260 36 100 36+18+9+9 2x4/8/130 L 189831
|
260 36 100 36+18+9+9 2x4/8/130 R 189832
|
260 18 100 48+24+12+12 2x4/8/130 L 189764
|
260 18 100 48+24+12+12 2x4/8/130 R 189765
|
260 25 100 48+24+12+12 2x4/8/130 L 189766
|
260 25 100 48+24+12+12 2x4/8/130 R 189767
|
260 36 100 48+24+12+12 2x4/8/130 L 189768
|
260 36 100 48+24+12+12 2x4/8/130 R 189769
|
260 18 100 36+18+9+9 2x4/8/130 L 189770
|
260 18 100 36+18+9+9 2x4/8/130 R 189771
|
260 25 100 36+18+9+9 2x4/8/130 L 189772
|
260 25 100 36+18+9+9 2x4/8/130 R 189773
|
260 36 100 36+18+9+9 2x4/8/130 L 189774
|
260 36 100 36+18+9+9 2x4/8/130 R 189775
|
260 18 100 48+24+12+12 2x4/8/130 L 189776
|
260 18 100 48+24+12+12 2x4/8/130 R 189777
|
260 25 100 48+24+12+12 2x4/8/130 L 189778
|
260 25 100 48+24+12+12 2x4/8/130 R 189779
|
260 36 100 48+24+12+12 2x4/8/130 L 189780
|
260 36 100 48+24+12+12 2x4/8/130 R 189781
|
260 18 100 36+18+9+9 2x4/8/130 L 189782
|
260 18 100 36+18+9+9 2x4/8/130 R 189783
|
260 25 100 36+18+9+9 2x4/8/130 L 189784
|
260 25 100 36+18+9+9 2x4/8/130 R 189785
|
260 36 100 36+18+9+9 2x4/8/130 L 189786
|
260 36 100 36+18+9+9 2x4/8/130 R 189787
|
