189743 - Compact Hoggers DP- special flange 35 DKN 189750

Product

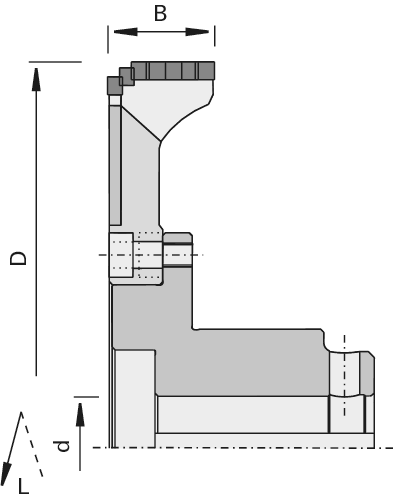

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • panel sizing saws
  • laminate flooring

Design

  • open gullet
  • with shear angle
  • resharpening area 4 mm

Advantages

  • improved chip evacuation thanks to shear angle
  • optimal positioning of knives from hogger to saw blade
  • reduction of scouring on the tool

Notes

  • application against feed for cutting along and across the grain
  • sense of rotation according to VDMA 8849
Feature Value
Ø D = Cutting circle diameter 260 [mm]
B = Cutting width 18 [mm]
Ø d = Bore diameter 35 [mm]
Z = No. of teeth 36+18+9+9

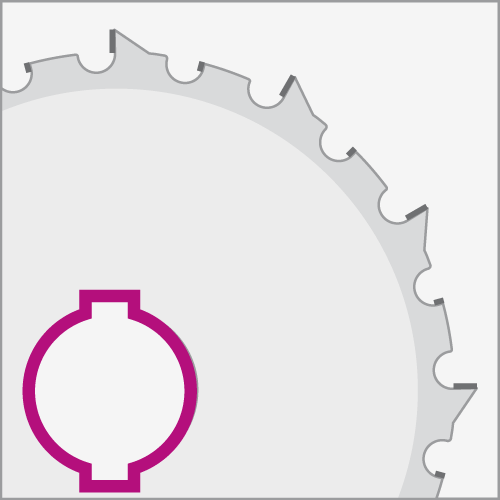

DKN = Double keyway 10x4 [mm]
NL = Pin holes 2x4/8/130
L/R = cutting direction L
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Spare parts / accessories

Product picture Description Design Ident-No. Comp./ Inqu.
Attachment Sleeves and Flanges Ø110x17x35 L=89.4 189750
|

available from stock
available on short notice
Delivery time on request
