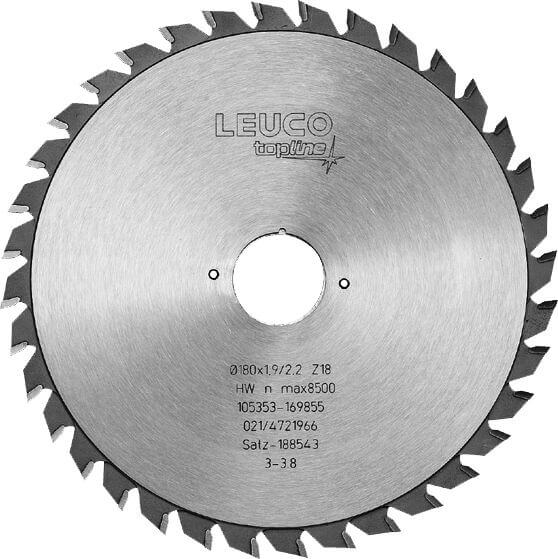

193257 - Scoring Saw Blades HW - adjustable "WS"
Product

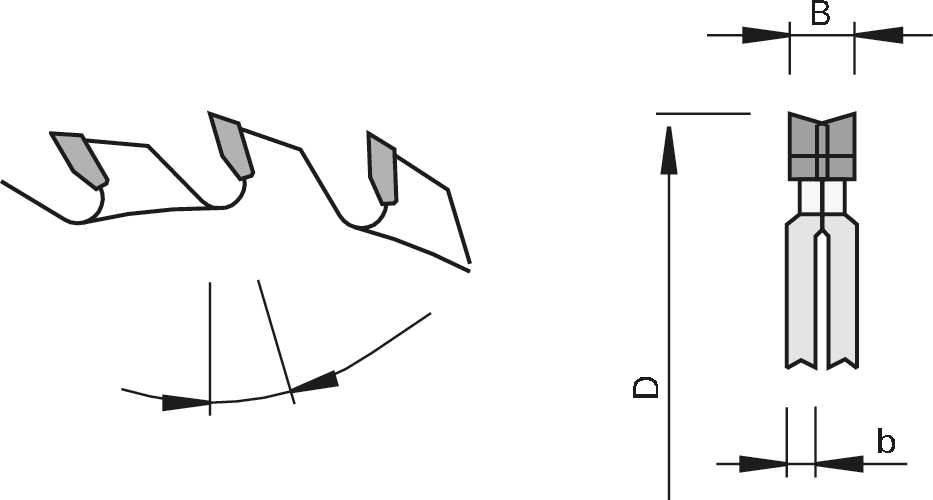

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- table saws
- panel sizing saws
- panel sizing saws with controllable scoring device
- for scoring of plastic-laminated panels
Design
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 03
Advantages
- low motor output thanks to tooth configuration "WS"
Notes
- split version - cutting width adjustable with spacers
- for main/scoring saw combinations see specifications (appendix)
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 125 [mm] | |
| B = Cutting width | 4,0-4,8 [mm] | |
| b = Body thickness | 1.6 [mm] | |
| Ø d = Bore diameter | 45 [mm] | |
| Z = No. of teeth | 2x20 | |
| Hook angle = Hook angle | 12 [°] | |
| Tooth geometry = Tooth configuration | WS | |
| LEUCODUR = Cutting material | HL Board 03 | |
| L = Delivery Status | ||
| Machine/Type | Giben, Mayer | |
|
Dimensions entered are not listed?
available from stock |
||
suitable main saw blade
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø355x4,4xØ60 Z=72 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 192826 | ||
|
Panel Sizing Saw Blades HW - U-Cut max "TR-F" | Ø350x4,4xØ75 Z=72 | 193122 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø355x4,4xØ60 Z=54 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 192825 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø355x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 192824 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut max "TR-F" | Ø500x4,4xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 | 192940 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø350x4,4xØ60 Z=54 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 193095 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut max "TR-F" | Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 | 193120 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "WS" | Ø305x4,4xØ30 Z=48 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 192821 | ||
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø355x4,4xØ75 Z=72 NL/DKN= 4/15/105 | 192911 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø355x4,4xØ75 Z=60 | 192912 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø305x4,4xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 | 192904 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø350x4,4xØ75 Z=60 | 192910 | ||
|
Panel Sizing Saw Blades HW - Q-Cut "G6" - nn-System | Ø350x4,4xØ60 Z=72 NL/DKN= 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 193191 | ||
|
|
Panel Sizing Saw Blades HW - U-Cut "TR-F" | Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94 | 192908 | ||
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø355x4,4xØ75 Z=72 | 193150 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø305x4,4xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 193140 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 193146 | ||
|
|
Panel Sizing Saw Blades HW - Q-Cut "G6" | Ø350x4,4xØ75 Z=72 | 193149 | ||
|
