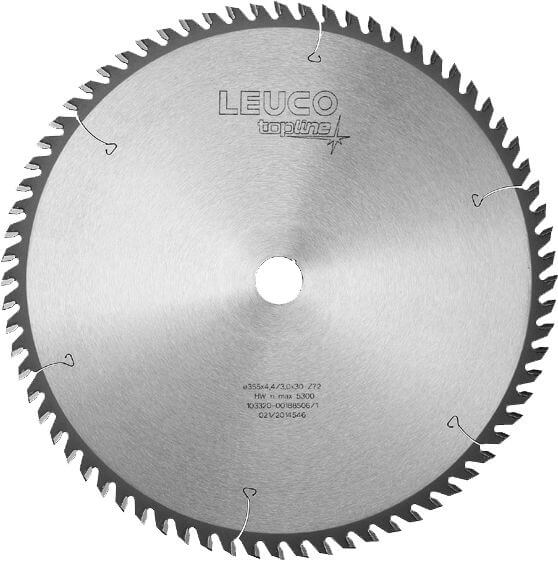

Panel Sizing Saw Blades HW - U-Cut "WS"
Article
Description
Machine / Application
- panel sizing saws
- double-end tenoners
- for sizing cuts in raw and veneered particleboard, hardboard, MDF panels and high-density plywood in single sheets and stacks
Design
- up to ØD=355, 10 degree hook angle and 15 degree corner angle
- from ØD=400, 15 degree hook angle and 10 degree corner angle
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 04 plus
Advantages
Notes
- for main/scoring saw combinations see specifications (appendix)
- on double-end tenoners in combination with large hoggers
- NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42
- NL**- Combi5 = 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120
- NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

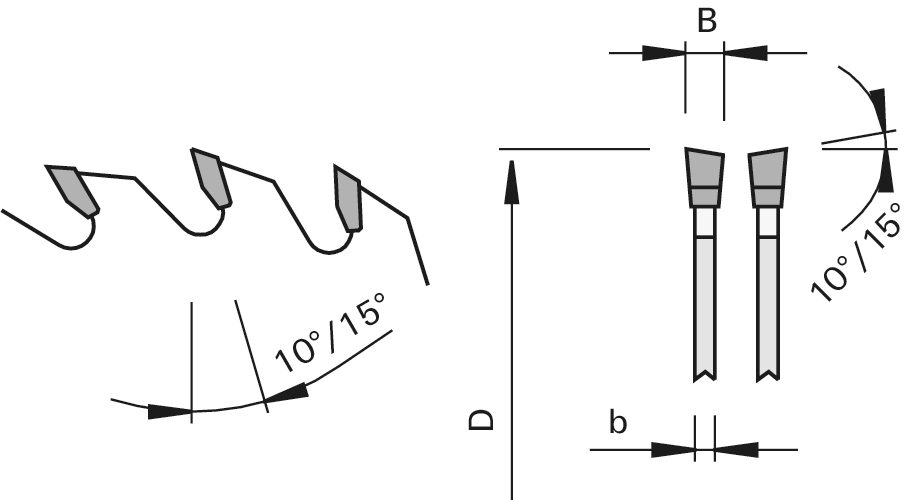

Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Corner∡
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dimensions entered are not listed?
available from stock |
|||||||||||||
305 | 4,4 | 2.8 | 30 | 48 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | 15 | WS | HL Board 04 plus | Mayer, Panhans | 192821 | ||
305 | 4,4 | 2.8 | 60 | 48 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | 15 | WS | HL Board 04 plus | 192822 | |||
320 | 4,4 | 3.2 | 30 | 50 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 | 10 | 15 | WS | HL Board 04 plus | Mayer, Format 4 | 193215 | ||
350 | 4,4 | 3 | 30 | 54 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | 15 | WS | HL Board 04 plus | SCM, Panhans, Schelling | 192823 | ||
350 | 4,4 | 3 | 60 | 54 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | 15 | WS | HL Board 04 plus | Holzma | 193095 | ||
355 | 4,4 | 3 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 10 | 15 | WS | HL Board 04 plus | Schelling, Mayer, Irion | 192824 | ||
355 | 4,4 | 3 | 60 | 54 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | 15 | WS | HL Board 04 plus | Homag (Holzma) | 192825 | ||
355 | 4,4 | 3 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 10 | 15 | WS | HL Board 04 plus | 192826 | |||
355 | 4,4 | 3 | 80 | 54 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 10 | 15 | WS | HL Board 04 plus | S.M.A. | 192827 | ||
355 | 4,4 | 3 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 10 | 15 | WS | HL Board 04 plus | S.M.A. | 192828 | ||
380 | 4,8 | 3.5 | 60 | 54 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | 15 | WS | HL Board 04 plus | S.M.A., Homag (Holzma) | 192829 | ||
380 | 4,4 | 3.2 | 60 | 72 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | 10 | WS | HL Board 04 plus | Homag (Holzma) | 193340 | ||
400 | 4,4 | 3.2 | 80 | 96 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | 192830 | |||
400 | 4,6 | 3.2 | 30 | 60 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | 10 | WS | HL Board 04 plus | Schelling, Mayer, Irion, HOLZ-HER | 192831 | ||
400 | 4,6 | 3.2 | 30 | 72 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | 10 | WS | HL Board 04 plus | Schelling, Mayer, Irion, HOLZ-HER | 192832 | ||
400 | 4,6 | 3.2 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | S.M.A. | 192834 | ||
430 | 4,6 | 3.2 | 75 | 72 | 4/15/105 | 15 | 10 | WS | HL Board 04 plus | Giben Prismatic 2 | 192835 | ||
430 | 4,6 | 3.2 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | S.M.A. | 192836 | ||
450 | 4,6 | 3.2 | 30 | 54 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | 10 | WS | HL Board 04 plus | Panhans, Irion, Schelling | 192837 | ||
450 | 4,6 | 3.2 | 80 | 72 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | S.M.A., Irion | 192838 | ||
500 | 4,6 | 3.2 | 30 | 60 | 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 | 15 | 10 | WS | HL Board 04 plus | Schelling, Irion | 192839 | ||
500 | 4,8 | 3.5 | 60 | 60 | 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 | 15 | 10 | WS | HL Board 04 plus | Homag (Holzma) | 192999 | ||
500 | 4,6 | 3.2 | 80 | 60 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | Teutomatic | 192840 | ||
550 | 5,0 | 3.5 | 80 | 60 | 2/7/110 + 2/9/110 + 2/8,4/130 + 2/14/110 + 4/9/100 + 4/19/120 | 15 | 10 | WS | HL Board 04 plus | Teutomatic | 192841 |
