185856 - Scraper Turnover Knives HW with 2 cutting edges and radius - Homag (non-symmetrical location of positioning hole, chamfer to prevent material fracturing)
Product

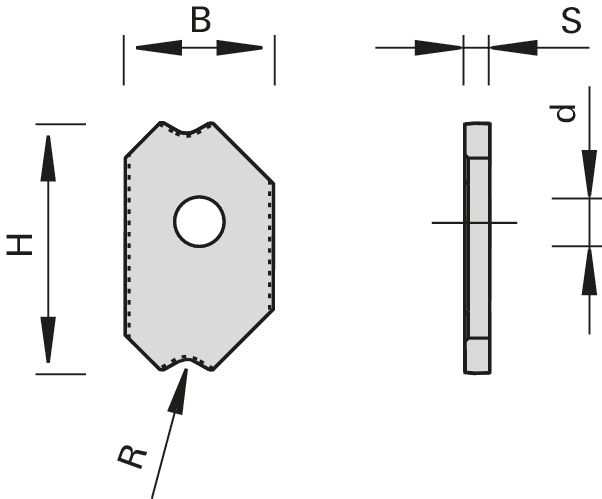

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- edge banding machines Homag Flexblade PN21
Design
- non-symmetrical profile and location of positioning hole
- special scraper which avoids material fracturing
- cutting material: HW
- HL Board 05 for wood-based panels, plastics and hard woods
Advantages
- no material fracturing also in the case of PP-edges
- no additional work steps needed
Notes
| Feature | Value | |
|---|---|---|
| Dimension | 12x20x2 R2 [mm] | |
| R = Radius | 2,0 [mm] | |
| B = Width | 12 [mm] | |
| H = Height | 20 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 4,0 [mm] | |
| Wedge∡ = Wedge angle | 83 [°] | |
| LEUCODUR = Cutting material | HL Board 05 | |
| PU = Packing unit | 2 [pc.] | |
| L = Delivery Status | ||
| Machine/Type | Homag | |
|
Dimensions entered are not listed?
available from stock |
||
