889645 - Modula Grooving Cutterheads HW
Product

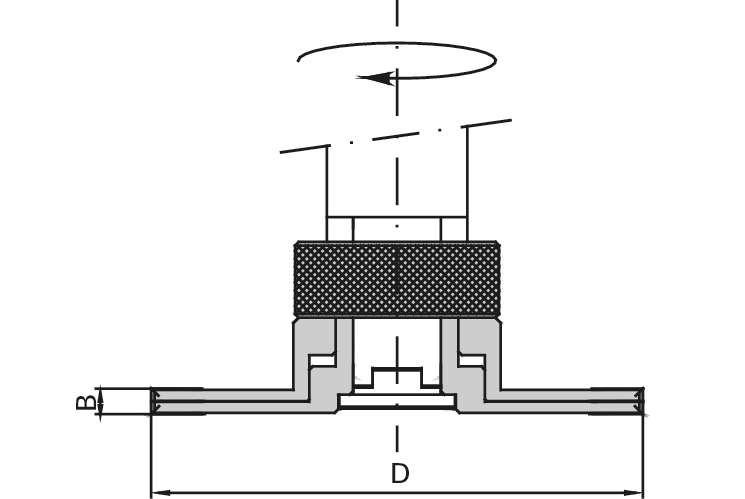

Drawing
-
- Tungsten Carbide [HW]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for grooving in solid woods and wood-based panels
Design
- basis number of wings Z=2
- n max = 11,000 min-1
Advantages
- unique adjusting unit with threaded bush
Notes
- play-free adjustment thanks to setting ring gauge
- fine-adjustment scale with 0,1 mm increments
- wrenches are not included in delivery
- mounting-set Ident-No.9210474
- please order shank-tool holder separately
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 140 [mm] | |

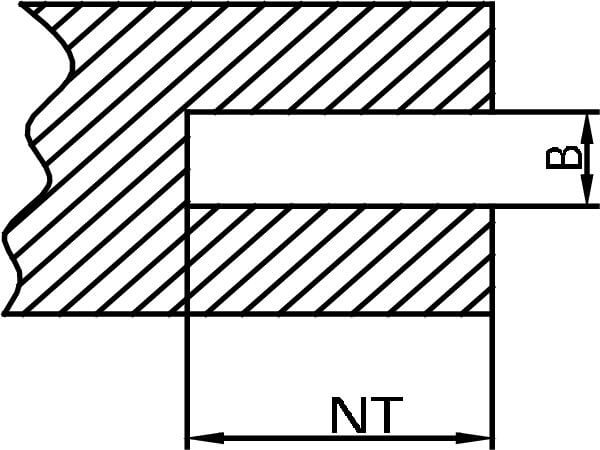

| B = Cutting width | 4,0-7,5 [mm] | |
| Ø d = Bore diameter | 25 [mm] | |
| Z = No. of teeth | 4+4+4 | |
| Tmax = Maximum profile depth | 40 [mm] | |
| nmax = maximum RPM | 11,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Remarks | with spurs | |
|
Dimensions entered are not listed?
available from stock |
||
