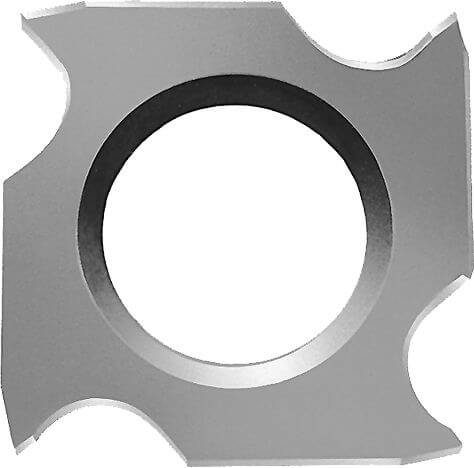

163699 - Grooving Turnover Knives HW with 4 cutting edges - grooving cutterheads
Product

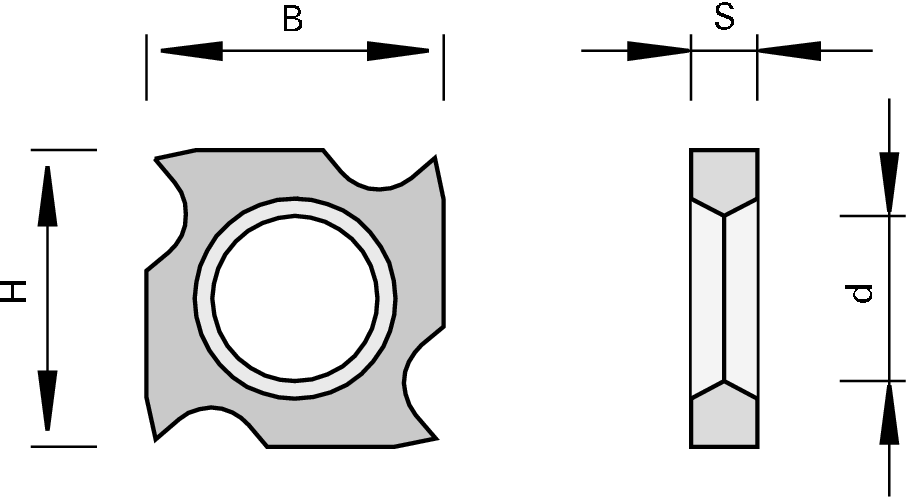

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in grooving cutterheads
Design
- cutting material: HW
- HL Solid 30 for wood-based panels, hard and soft woods
Advantages
Notes
- Ident-No. 163699 for groove width 4 mm
- Ident-No. 165906 for groove width 5 mm
- Ident-No. 169250 for groove width > 7 mm
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 18x18x1,95 [mm] | |
| B = Width | 18 [mm] | |
| H = Height | 18 [mm] | |
| S = Thickness | 1.95 [mm] | |
| Ø d = Bore diameter | 10 [mm] | |
| Type = Type | 1 | |
| LEUCODUR = Cutting material | HL Solid 30 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
