Scoring Saw Blades HW "WS" - for finger joint machines
Product

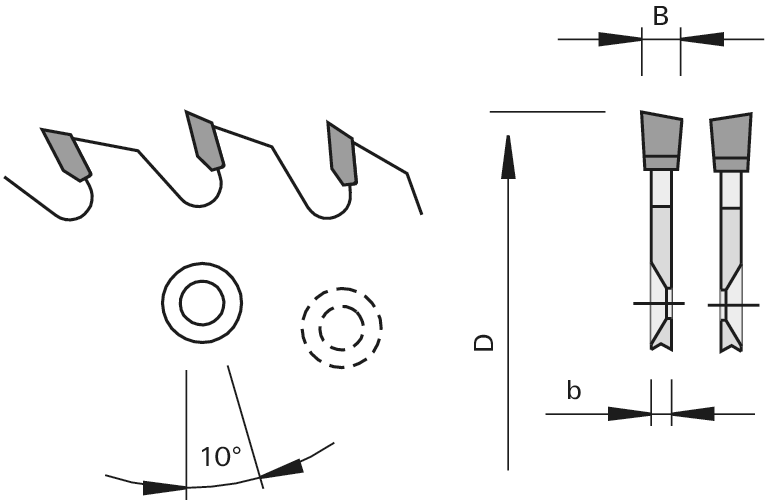

Drawing
-
-
- Tungsten Carbide [HW]
Article
Description
Machine / Application
- finger jointing lines Grecon
- for scoring of solid woods
Design
- 6 countersunk pin holes on both sides each
- for clockwise and counter-clockwise rotation
- tooth configuration: alternate top bevel "WS"
- cutting material: HW HL Board 06
Advantages
Notes
- along and accross the grain, from below
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Corner∡
[°] |
Cutting quality* | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||||
| 200 | 7,0 | 4 | 75 | 48 | 2x6/6,5/95 | 10 | 10 | ▲▲▲ | HL Board 06 | Grecon | 189539 | ||
