50661673 - 1577 Round Star Cutterheads

Product

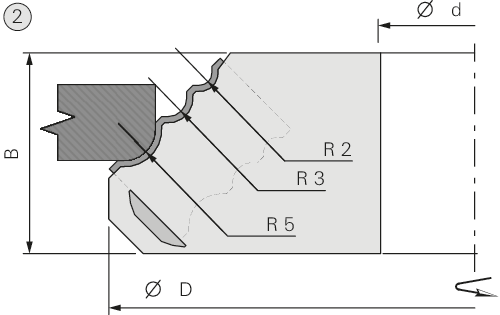

Drawing

  • Tungsten Carbide [HW]
  • MAN

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • spindle moulder
  • for profiling of solid woods and wood-based panels

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Solid 20
  • high-tensile aluminum body
  • chip limiter design

Advantages

Notes

  • application against feed
Feature Value
R = Radius 2, 3, 5 [mm]
Ø D = Cutting circle diameter 140 [mm]
B = Cutting width 32 [mm]
Ø d = Bore diameter 30 [mm]
Z = No. of teeth 2
Type = Type 2
nmin-nmax = RPM range 5400-6400 [min-1]
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Turnover Knives

Product picture Description Design Ident-No. Comp./ Inqu.
Profile Knives KB19 25x16x2.0N R=Ø2, 3, 5 50820002
|

available from stock
available on short notice
Delivery time on request

Spare parts / accessories

Product picture Description Design Ident-No. Comp./ Inqu.
Screwdrivers with sliding handle for hexagon socket SW4x100 166091
|
Clamping Pieces 12x8,5/M8L 180357
|
Clamping Set Screws M8x26 SW4 180340
|
Pressure Bars 23x11x6 50591382
|

available from stock
available on short notice
Delivery time on request
