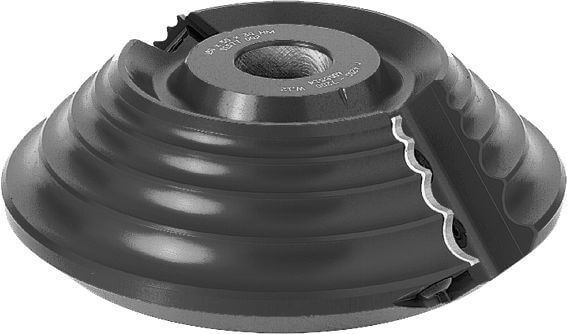

Round Star Cutterheads HW

Product

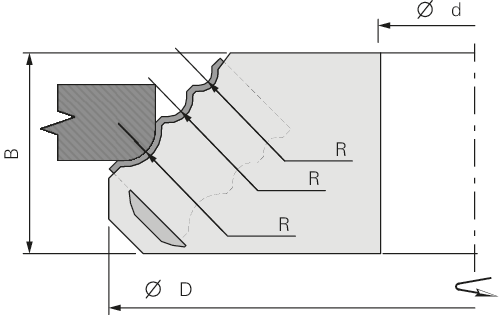

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • spindle moulder
  • for profiling of solid woods and wood-based panels

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Solid 20
  • high-tensile aluminum body
  • chip limiter design

Advantages

Notes

  • application against feed

Table- and picture caption ...

R
[mm] 		Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Type nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

4, 6, 8, 10 180 50 30 2 1 4600-7800 50661672
|
2, 3, 5 140 32 30 2 2 5400-6400 50661673
|
