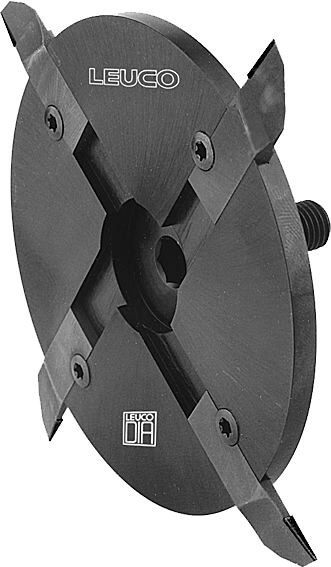

Scribing Cutterheads DP HSK 25R Postforming - Homag
Product
Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- postforming machines Homag
- for scribing of the radii during the postforming process
Design
- cutting edges parallel to cutter axis
- tooth configuration: symmetrical design for all radii
- n max = 9,000 min-1
Advantages
- optimum cutting quality thanks to high concentric and runout accuracy and precise tool balancing
Notes
- for use without inlay strip
- application against feed
- LEUCODIA cutter inserts to be installed only in sets (packing unit 4 pieces)
- B=0.5 mm not recommended for butted-up workpieces; in this case B=1.2 mm should be used instead
- sense of rotation see drawing
|
Ø D
[mm] |
B
[mm] |
L1
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||
| 125 | 0,5 | 26 | HSK 25R | 4 | 9,000 | L | 180075 | ||
| 125 | 0,5 | 26 | HSK 25R | 4 | 9,000 | R | 180076 | ||
| 125 | 0,8 | 26 | HSK 25R | 4 | 9,000 | L | 180957 | ||
| 125 | 0,8 | 26 | HSK 25R | 4 | 9,000 | R | 180958 | ||
| 125 | 1,2 | 26 | HSK 25R | 4 | 9,000 | L | 180832 | ||
| 125 | 1,2 | 26 | HSK 25R | 4 | 9,000 | R | 180833 | ||
