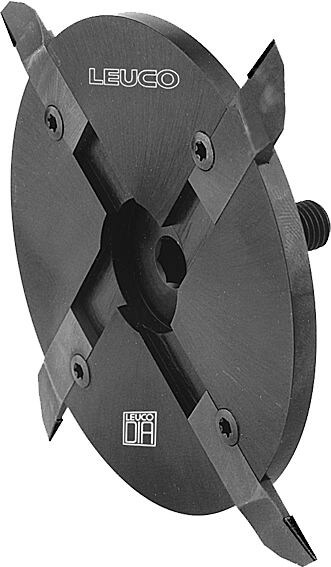

180832 - Scribing Cutterheads DP HSK 25R Postforming - Homag

Product

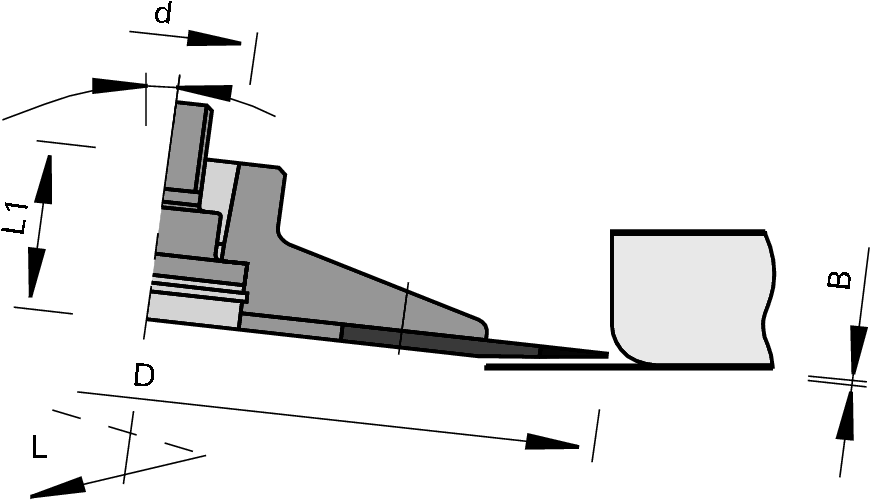

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • postforming machines Homag
  • for scribing of the radii during the postforming process

Design

  • cutting edges parallel to cutter axis
  • tooth configuration: symmetrical design for all radii
  • n max = 9,000 min-1

Advantages

  • optimum cutting quality thanks to high concentric and runout accuracy and precise tool balancing

Notes

  • for use without inlay strip
  • application against feed
  • LEUCODIA cutter inserts to be installed only in sets (packing unit 4 pieces)
  • B=0.5 mm not recommended for butted-up workpieces; in this case B=1.2 mm should be used instead
  • sense of rotation see drawing
Feature Value
Ø D = Cutting circle diameter 125 [mm]
B = Cutting width 1,2 [mm]
L1 = Total length 26 [mm]
Ø d = Bore diameter HSK 25R [mm]
Z = No. of teeth 4
nmax = maximum RPM 9,000 [min-1]
L/R = cutting direction L
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Spare parts / accessories

Product picture Description Design Ident-No. Comp./ Inqu.
LEUCODIA cutting inserts 1,2 LL 180834
|
Screws M10x1,25x32 SW8 177780
|
Shim Rings 18x25x1,0 DIN 988 177781
|
Locking Rings 25x1,2 DIN 472 177782
|
Countersunk Screws M4x0,5x8,4 178722
|
Screwdrivers with spinner handle for Torx T15x80 171188
|
