184969 - DIAREX Jointing Cutters CM DP LowNoise - Hydro

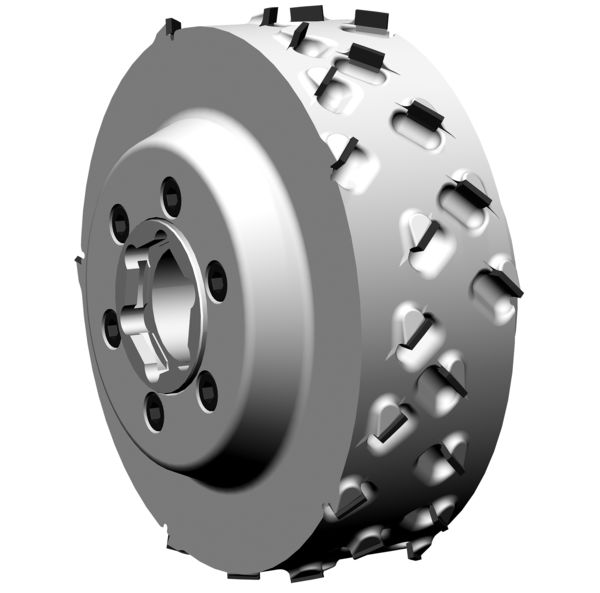

Product

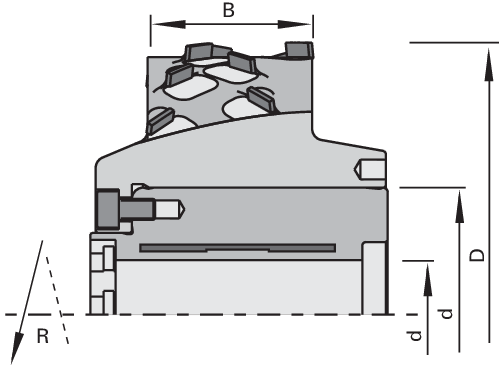

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines
- for noise-reduced, chip-free jointing of melamine-, paper-, HPL-laminated, foiled and veneered panels
Design
- symmetrical and asymmetrical design
- large opposing shear angle
- uneven cutting edge configuration
- resharpening area 3 mm
Advantages
- optimized chip removal thanks to ChipMeister version
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- optimal glueing of edges
- optimized as to noise level and chip flow
- excellent cutting quality even in the case of loose core
- suitable for laser-edge-technology
Notes
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 125 [mm] | |
| B = Cutting width | 43 [mm] | |
| Ø d = Bore diameter | 70/30 [mm] | |
| Z = No. of teeth | 3+3 | |
| nmax = maximum RPM | 15,000 [min-1] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
| Machine/Type | IMA 08.378 - Hydro | |
| Remarks | asymmetrical | |
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Face spanner | 14-100/5 | 187136 | ||
|
available from stock |
|||||
