DIAREX Jointing Cutters CM DP LowNoise
Product

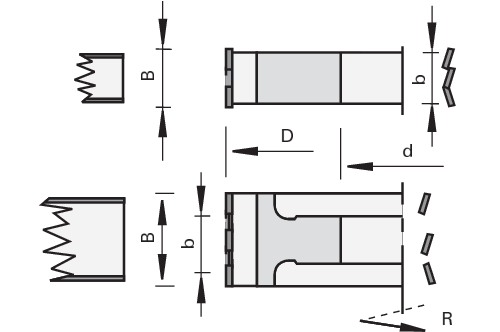

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- edge banding machines
- for noise-reduced, chip-free jointing of melamine-, paper-, HPL-laminated, foiled and veneered panels
Design
- symmetrical and asymmetrical design
- large opposing shear angle
- uneven cutting edge configuration
- resharpening area 3 mm
Advantages
- optimized chip removal thanks to ChipMeister version
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- optimal glueing of edges
- optimized as to noise level and chip flow
- excellent cutting quality even in the case of loose core
- suitable for laser-edge-technology
Notes
- sense of rotation according to VDMA 8849
|
Ø D
[mm] |
B
[mm] |
Ø d
[mm] |
Z |
nmax
[min-1] |
L/R | Machine/Type | Remarks | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 125 | 43 | 70/30 | 3+3 | 15,000 | L | IMA 08.378 - Hydro | asymmetrical | 184969 | ||
| 125 | 43 | 70/30 | 3+3 | 15,000 | R | IMA 08.378 - Hydro | asymmetrical | 184970 | ||
| 125 | 43 | 70/30 | 4+4 | 15,000 | L | IMA 08.379 - Hydro | asymmetrical | 185119 | ||
| 125 | 43 | 70/30 | 4+4 | 15,000 | R | IMA 08.379 - Hydro | asymmetrical | 185118 | ||
| 125 | 43 | 70/30 | 5+5 | 15,000 | L | Homag Performance S2 - Hydro | symmetrical | 185169 | ||
| 125 | 43 | 70/30 | 5+5 | 15,000 | R | Homag Performance S2 - Hydro | symmetrical | 185170 | ||
| 125 | 63 | 70/30 | 5+5 | 15,000 | L | Homag Performance S2 - Hydro | symmetrical | 185171 | ||
| 125 | 63 | 70/30 | 5+5 | 15,000 | R | Homag Performance S2 - Hydro | symmetrical | 185172 | ||
| 150 | 43 | 70/30 | 5+5 | 12,000 | L | Homag Power S2 / Performance S2 - Hydro | symmetrical | 185165 | ||
| 150 | 43 | 70/30 | 5+5 | 12,000 | R | Homag Power S2 / Performance S2 - Hydro | symmetrical | 185166 | ||
| 150 | 63 | 70/30 | 5+5 | 12,000 | L | Homag Power S2 / Performance S2 - Hydro | symmetrical | 185167 | ||
| 150 | 63 | 70/30 | 5+5 | 12,000 | R | Homag Power S2 / Performance S2 - Hydro | symmetrical | 185168 | ||
| 150 | 43 | HSK 63F | 5+5 | 12,000 | L | Homag Power S2 HSK 63F | symmetrical | 185173 | ||
| 150 | 43 | HSK 63F | 5+5 | 12,000 | R | Homag Power S2 HSK 63F | symmetrical | 185174 | ||
| 150 | 63 | HSK 63F | 5+5 | 12,000 | L | Homag Power S2 HSK 63F | symmetrical | 185175 | ||
| 150 | 63 | HSK 63F | 5+5 | 12,000 | R | Homag Power S2 HSK 63F | symmetrical | 185176 | ||
