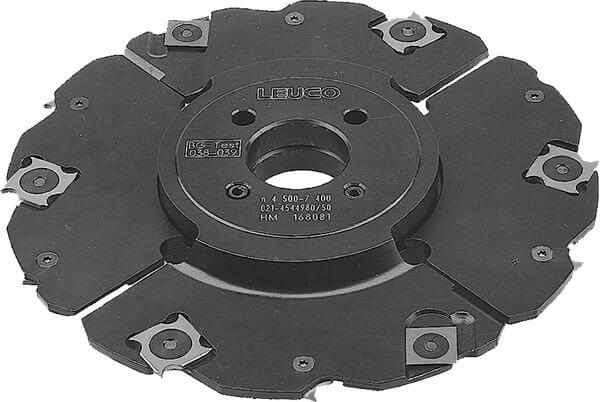

Grooving Cutterheads HW - adjustable 4-15 mm

Product

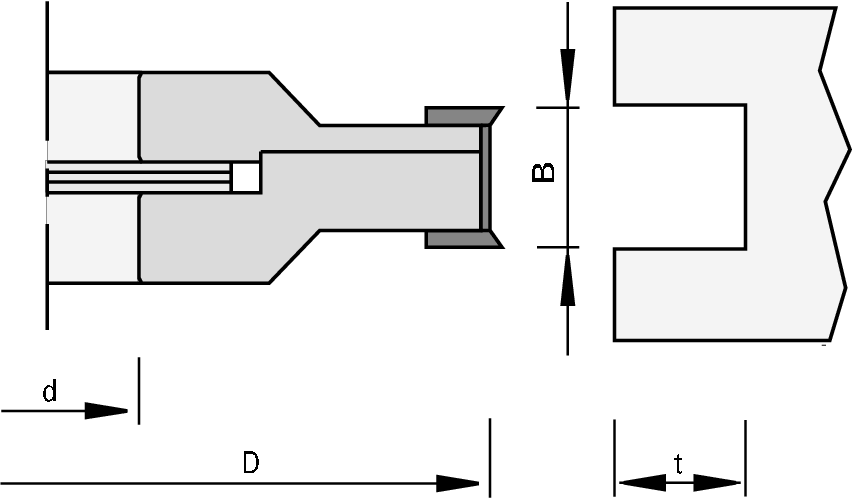

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • table shapers
  • molders
  • double end tenoners

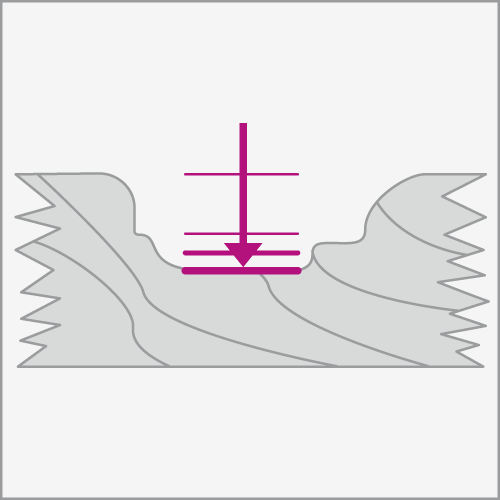

  • for chip-free grooving in solid woods and in wood-based panels

Design

Advantages

Notes

  • application against feed with and across the grain
  • cutting width 4 - 7.5 mm two-piece
  • cutting width 4 - 15 mm three-piece
  • cutting width adjustable with shims in 0.1 mm increments
  • single cutterheads and spacers secured against rotation with pins

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z Tmax
[mm] 		DKN
[mm] 		nmin-nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

130 4,0-7,5 30 4+4 25 6000-10000 166509
|
180 4,0-7,5 30 8+4 35 4500-7400 168081
|
180 4,0-7,5 35 8+4 35 10x4 4500-7400 168083
|
180 4,0-7,5 40 8+4 35 12x5 4500-7400 168085
|
180 4,0-7,5 50 8+4 30 4500-7400 168087
|
180 4,0-15 30 8+2+4 35 4500-7400 168080
|
180 4,0-15 35 8+2+4 35 10x4 4500-7400 168082
|
180 4,0-15 40 8+2+4 35 12x5 4500-7400 168084
|
