1736710 - CM190 Chamfering cutter DP

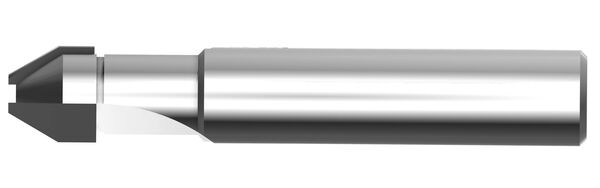

Product

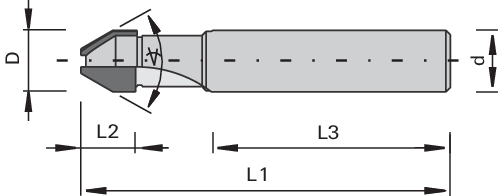

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- Can be used on CNC and gantry machines
- Suitable for the milling of V grooves and for chamfering
- Designed for CFRP and GFRP and stacks in the aerospace sector
Design
- Different opening angles possible
- With or without face cutting edge
Advantages
- for long edge lives and form stability in abrasive materials
Notes
- Other dimensions and configurations on request
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 12.7 [mm] | |
| L2 = Cutting width | 11,6 [mm] | |
| Ø d = Shank diameter | 12,7 [mm] | |
| L3 = Shank length | 50.4 [mm] | |
| L1 = Total length | 76.2 [mm] | |
| Z = No. of teeth | 2 | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | R | |
| ∡ of point = Spitzenwinkel | 60 [°] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
