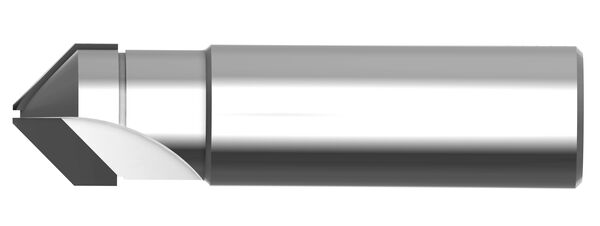

CM190 Chamfering cutter DP
Product

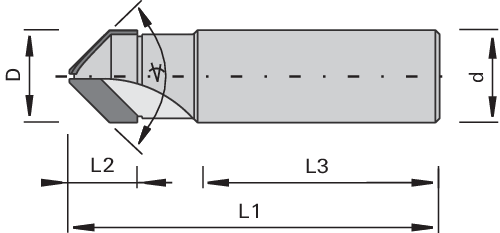

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines
- Suitable for the milling of V grooves and for chamfering
- Designed for CFRP and GFRP and stacks in the aerospace sector
Design
- Different opening angles possible
- With or without face cutting edge
Advantages
- for long edge lives and form stability in abrasive materials
Notes
- Other dimensions and configurations on request
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z |
nmax
[min-1] |
L/R |
∡ of point
[°] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 12.7 | 11,6 | 12,7 | 50.4 | 76.2 | 2 | 24,000 | R | 60 | 1736710 | ||
| 19.05 | 14 | 19,05 | 50 | 76.2 | 2 | 24,000 | R | 90 | 1740481 | ||
