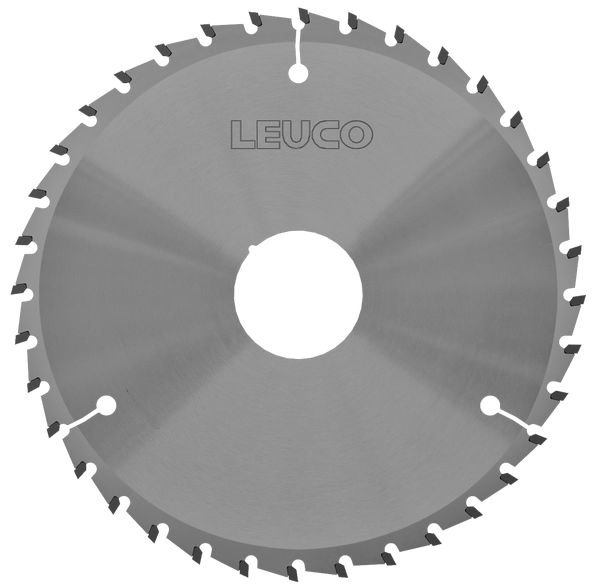

192703 - Scoring Saw Blades HW "KO-F" - nn-System

Product

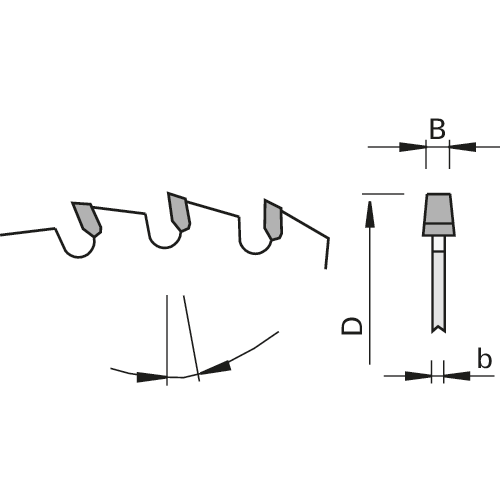

Drawing

Tungsten Carbide [HW]

Comp./ Inqu. |

Technical data

Machine / Application

panel sizing saws with scoring device
for scoring of plastic-laminated panels

Design

special NoNoise gullet geometry
tooth configuration: conical-flat "KO-F"
cutting material: HW HL Board 04 plus

Advantages

quick adjustment
universally applicable
optimum cutting quality thanks to improved runout accuracy
reduction of the scoring depth
especially low noise level
noise reduction by approx. 6 dB(A) when idling
excellent cutting quality in all common coatings
long edge lives provide for the necessary productivity and economic efficiency

Notes

height adjustable to kerf of main saw blade
1 mm scoring depth = 0.21 mm cutting width
optimum scoring depth 1.0 - 2.0 mm
for main/scoring saw combinations see specifications (Technical Appendix)

	Feature	Value
	Ø D = Cutting circle diameter	200 [mm]
	B = Cutting width	4,45-5,25 [mm]
	b = Body thickness	3.5 [mm]
	Ø d = Bore diameter	20 [mm]
	Z = No. of teeth	36
	NL = Pin holes	2/11/66
	Hook angle = Hook angle	8 [°]
	Tooth geometry = Tooth configuration	KO-F
	LEUCODUR = Cutting material	HL Board 04 plus
	L = Delivery Status
	Machine/Type	Schelling
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request

suitable main saw blade

	Description	Design	Ident-No.	Comp./ Inqu.
	Panel Sizing Saw Blades HW - U-Cut "WS"	Ø400x4,6xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	192831	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø305x3,2xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	192903	\|
	Panel Sizing Saw Blades HW - U-Cut max "TR-F"	Ø400x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	193127	\|
	Panel Sizing Saw Blades HW - U-Cut max "TR-F"	Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	193120	\|
	Panel Sizing Saw Blades HW - U-Cut "WS"	Ø305x4,4xØ30 Z=48 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	192821	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø520x4,4xØ30 Z=72 NL/DKN= 4/13/94	193251	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø360x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42	193314	\|
	Panel Sizing Saw Blades HW - U-Cut "WS"	Ø400x4,6xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	192832	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	192908	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø480x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	192937	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø460x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	192933	\|
	Panel Sizing Saw Blades HW - U-Cut "TR-F"	Ø400x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 +2/13/94	192919	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø350x4,25xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193145	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø360x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193153	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø305x4,4xØ30 Z=60 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193140	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø400x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193161	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø350x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193146	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø460x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193177	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø480x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193180	\|
	Panel Sizing Saw Blades HW - Q-Cut "G6"	Ø370x4,4xØ30 Z=72 NL/DKN= 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94	193155	\|
available from stock available on short notice Delivery time on request
