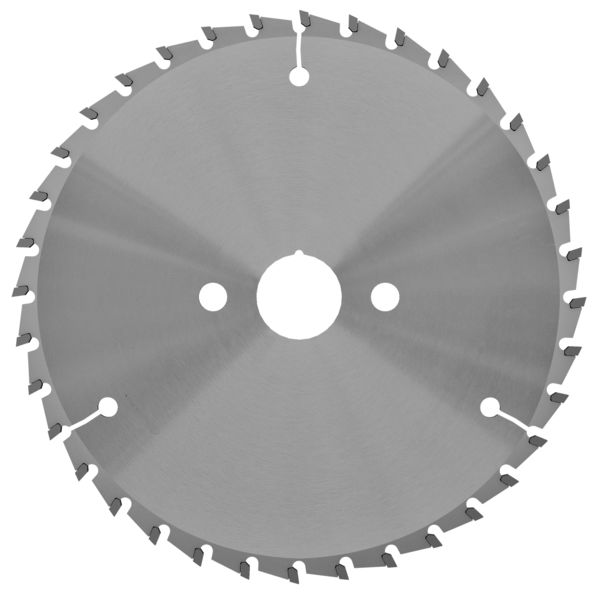

192686 - Scoring Saw Blades HW "KO-HR" - nn-System
Product

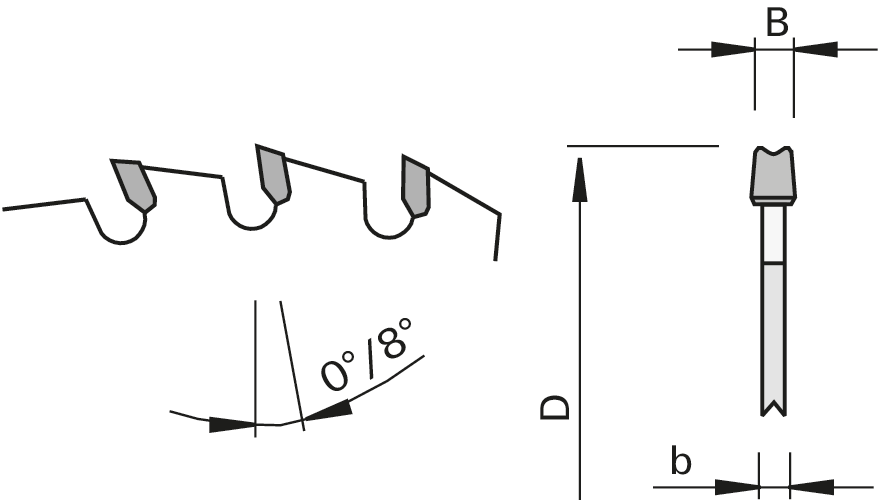

Drawing
-
-
- Tungsten Carbide [HW]
-
Technical data
Description
Machine / Application
- Panel Sizing Saw Blades with scoring device
- for chip-free scoring of plastic coated, paper laminated as well as veneered panels
Design
- special NoNoise gullet geometry
- cutting material: HW HL Board 04 plus
- tooth configuration: conical hollow back "KO-HR"
Advantages
- especially low noise level
- noise reduction by approx. 6 dB(A) when idling
- excellent cutting quality in all common coatings
- long edge lives provide for the necessary productivity and economic efficiency
Notes
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 160 [mm] | |
| B = Cutting width | 4,45-5,25 [mm] | |
| b = Body thickness | 3.2 [mm] | |
| Ø d = Bore diameter | 45 [mm] | |
| Z = No. of teeth | 28 | |
| NL = Pin holes | 3/11/70 | |
| Hook angle = Hook angle | 8 [°] | |
| Tooth geometry = Tooth configuration | KO-HR | |
| LEUCODUR = Cutting material | HL Board 04 plus | |
| L = Delivery Status | ||
| Machine/Type | Giben Prismatic | |
|
