Panel Sizing Saw Blades HW - Q-Cut "TR-F K"

Product

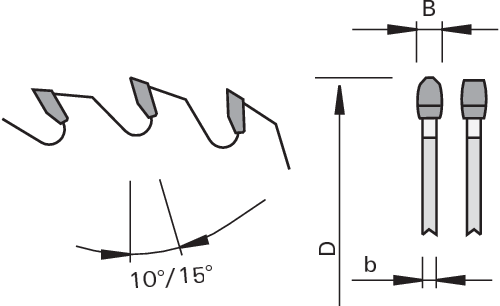

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • horizontal panel sizing saws
  • for micro cuts in new materials (special surfaces) and plastics

Design

  • vibration and noise damping ornaments
  • additional expansion slots
  • tooth configuration: TR-F K
  • cutting material: HW HL Board 04 plus

Advantages

  • excellent cutting quality in "anti fingerprint" materials and for conventional plastics
  • no scoring on the cutting surface due to convex tooth sides
  • no flares on the surface of sensible materials

Notes

  • Attention: when assigning the appropriate scoring saw blades, please take into account the cutting width reduction of 4 mm!
  • NL**- Combi3 = 2/10/60 + 2/9/46 + 2/9.5/46.5 + 2/7/42
  • NL**- Combi7 = 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z NL Hook angle
[°] 		Tooth geometry LEUCODUR Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

350 4,0 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 10 TR-F K HL Board 04 plus Schelling, SCM, Panhans, Mayer; HOLZ-HER 192974
|
350 4,0 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 10 TR-F K HL Board 04 plus Homag (Holzma) 192975
|
380 4,0 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F K HL Board 04 plus Homag (Holzma) 192976
|
400 4,0 3.2 30 72 2/10/60 + 2/9/46 + 2/9,5/46,5 + 2/7/42 + 2/13/94 15 TR-F K HL Board 04 plus Schelling 192977
|
450 4,0 3.2 60 72 2/9/110 + 2/10/80 + 2/11/85 + 2/11/115 + 2/11/148 + 2/14/100 + 2/14/125 + 2/19/120 15 TR-F K HL Board 04 plus Homag (Holzma) 192978
|
460 4,0 3.2 30 72 2/13/94 15 TR-F K HL Board 04 plus Schelling 192979
|
