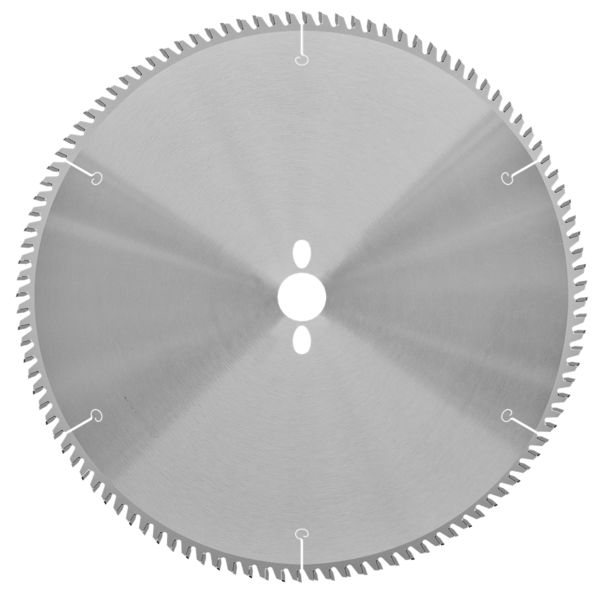

NF-Chop Saw Blades HW - positive hook angle "TR-F" topline
Product

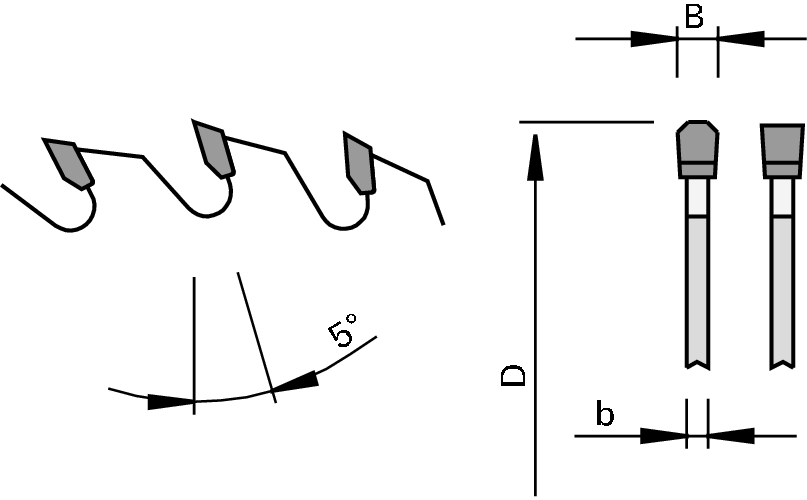

Drawing
-
-
- Tungsten Carbide [HW]
-
Article
Description
Machine / Application
- table saws
- for dividing and miter cuts in aluminum and plastic profiles as well as for wood-based panels (Corian®, Noblan, Varicor® and HPL)
Design
- positive hook angle
- tooth configuration: triple chip / flat "TR-F"
- cutting material: HW HL Board 06
Advantages
- noise-reduction thanks to laser ornaments
Notes
- tight workpiece clamping required
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
Hook angle
[°] |
Tooth geometry | LEUCODUR | Machine/Type | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 350 | 3,2 | 2.5 | 30 | 108 | 2/7/42 + 2/9/46 + 2/10/60 | 5 | TR-F | HL Board 06 | Haffner, Rapid, Pfeffer | 193114 | ||
| 350 | 3,2 | 2.5 | 32 | 92 | 2/12/64 | 5 | TR-F | HL Board 06 | 193113 | |||
| 350 | 3,2 | 2.5 | 32 | 108 | 2/12/64 | 5 | TR-F | HL Board 06 | 193112 | |||
| 400 | 3,8 | 3.2 | 30 | 96 | 4/12/64 + 2/12/80 | 5 | TR-F | HL Board 06 | 189882 | |||
| 400 | 3,8 | 3.2 | 40 | 96 | 4/12/64 + 2/12/80 | 5 | TR-F | HL Board 06 | Eisele LMS II, LMS III | 189883 | ||
| 420 | 3,8 | 3.2 | 30 | 96 | 5 | TR-F | HL Board 06 | ELU DG 102, 104, DLG, MGS 105, Rapid SAT | 189884 | |||
| 450 | 3,8 | 3.2 | 40 | 108 | 4/12/64 + 2/12/80 | 5 | TR-F | HL Board 06 | Eisele | 189885 | ||
| 500 | 4,0 | 3.4 | 30 | 120 | 2/10/70 + 2/12/64 | 5 | TR-F | HL Board 06 | Pfeifer, Rapid, BKS | 189886 | ||
