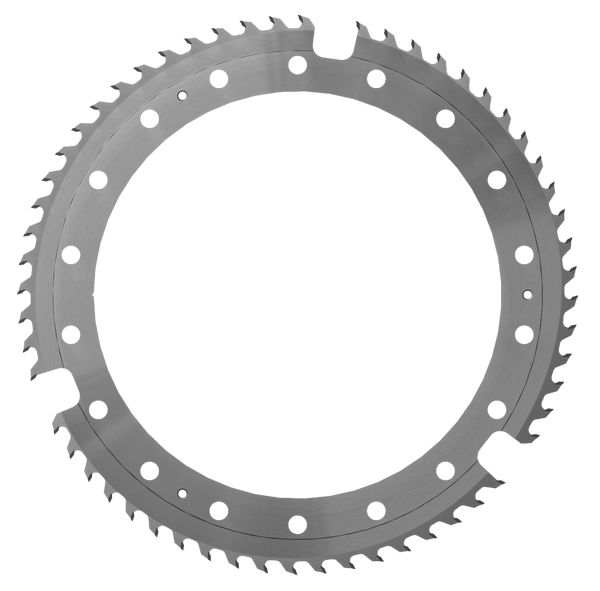

Hogger Rings HW "F"

Product

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • chipping line rough and fine cut
  • for longitudinal cuts in wet and dry soft woods

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Solid 15 or HL Board 20

Advantages

  • extremely high bending strength and hardness of the teeth

Notes

  • the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
  • Ident-No. is only for orientation

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
b1
[mm]
Ø D1
[mm]
Ø d
[mm]
Z Free slots
[pc.]
Hook angle
[°]
L/R Tooth geometry LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

560 5,0 3.6 5.8 485 405 48-4 4 20 L F HL Board 10 80317242
|
560 5,0 3.6 5.8 485 405 48-4 4 20 R F HL Board 10 80317243
|
605 4,4 3.2 6 540 440 48 20 L F HL Solid 15 80294208
|
605 4,4 3.2 6 540 440 48 20 R F HL Solid 15 80294209
|
620 5,0 3.8 5 540 450 60-3 3 15 L F HL Board 20 80206577
|
620 5,0 3.8 5 540 450 60-3 3 15 R F HL Board 20 80206581
|
630 4,4 3.2 6 539 440 48-3 3 20 L F HL Solid 15 80274257
|
630 4,4 3.2 6 539 440 48-3 3 20 R F HL Solid 15 80274262
|
