185974 - DP cutting edge
Product

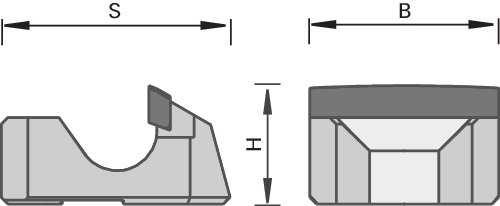

Drawing
-
- Polycrystalline diamond [DP]
Technical data
Description
Machine / Application
- for use in DIAMAX SmartJointer airFace jointing cutterheads
- new replacement segments for a SmartJointer airFace with constant diameter
Design
- DP cutting edges with integrated stainless steel gullet
- Resharpening area: 1.5 mm
- highly precise with the same weight
- 187243+187244 have a reduced cutting width to process 8-mm panels on OTT machines
Advantages
- with integrated stainless steel gullet - no washing out!
- highly precise with the same weight
- Constant diameter of the tool after having inserted a new segment
- protected against corrosion
Notes
- ATTENTION! When replacing the segments, please observe the operating instructions
- ATTENTION! Segment 187243 suitable for tools 186057 and 187244 suitable for tools 186058 for Ott machines.
| Feature | Value | |
|---|---|---|
| Dimension | 17,2x14,2x8,9 [mm] | |
| B = Width | 14,2 [mm] | |
| H = Height | 8.9 [mm] | |
| S = Thickness | 17.2 [mm] | |
| LEUCODUR = Cutting material | LEUCODIA | |
| PU = Packing unit | 4 [pc.] | |
| L = Delivery Status | ||
| Remarks | Ø D=125 / 35° | |
|
Dimensions entered are not listed?
available from stock |
||
