168355 - Radius Turnover Knives HW with 2 cutting radii
Product

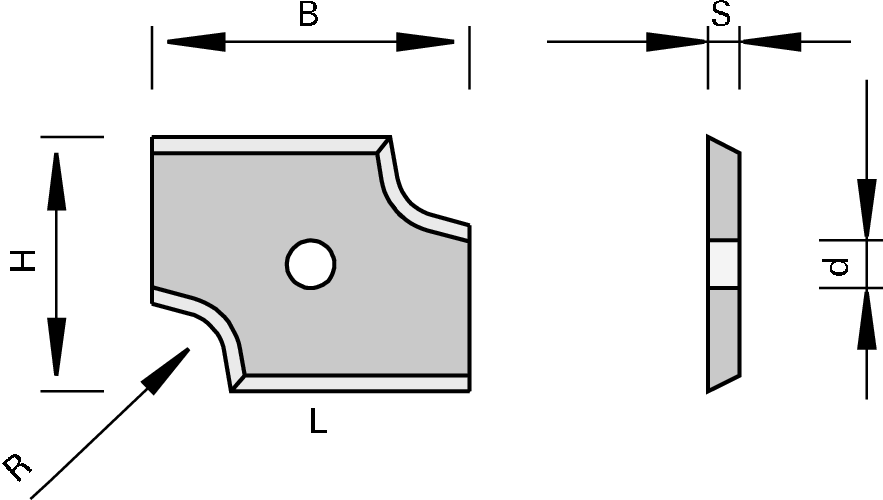

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in edge rounding cutterheads
Design
- cutting material: HW
- HL Board 05 for wood-based panels, plastics and hard woods
Advantages
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 20x16x2 R3 [mm] | |
| R = Radius | 3,0 [mm] | |
| B = Width | 20 [mm] | |
| H = Height | 16 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 3,0 [mm] | |
| Wedge∡ = Wedge angle | 55 [°] | |
| LEUCODUR = Cutting material | HL Board 05 | |
| PU = Packing unit | 10 [pc.] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
