165932 - Profile Knives HW for stile-and-rail profile cutterheads and panel raising cutterheads
Technical data
Description
Machine / Application
- type 1, 2, 3 for use in stile-and-rail profile cutterheads
- type 4, 5, 6 for use in panel-raising cutterheads
Design
- cutting material: HW
- HL Solid 20 for hard and soft woods
Advantages
Notes

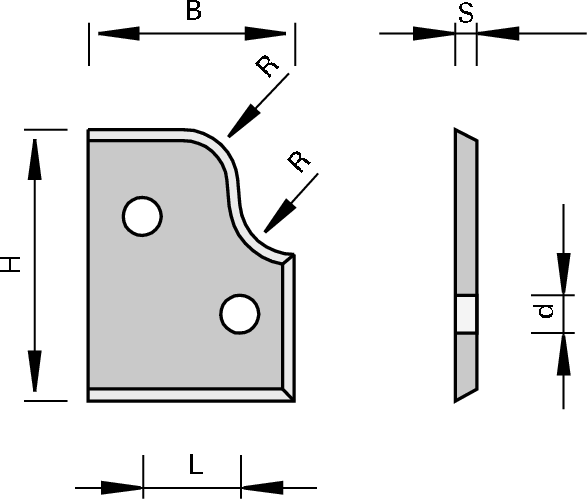

Feature | Value | |
---|---|---|
Dimension | 19x25x2 R5 [mm] | |
R = Radius | 5,0 [mm] | |
B = Width | 19 [mm] | |
H = Height | 25 [mm] | |
S = Thickness | 2 [mm] | |
Ø d = Bore diameter | 3,5 [mm] | |
L = Bore distance | 9,0 [mm] | |
Type = Type | 5 | |
Wedge∡ = Wedge angle | 50 [°] | |
LEUCODUR = Cutting material | HL Solid 20 | |
PU = Packing unit | 10 [pc.] | |
L = Delivery Status | ||
Dimensions entered are not listed?
available from stock |
