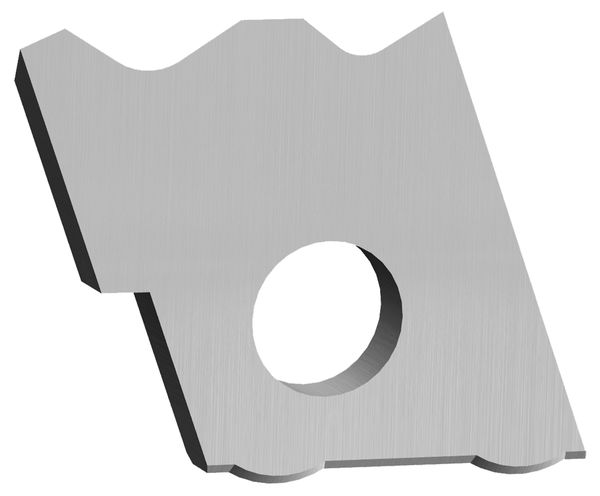

187222 - Multi Profile Knives HW - Homag (Brandt)
Product

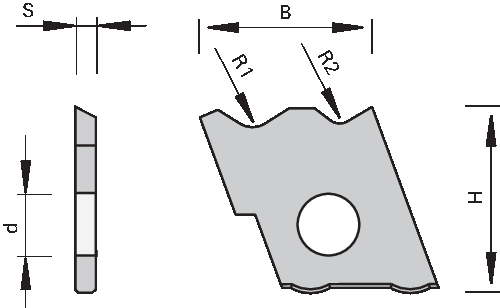

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- edge banding machines Homag (Brandt) - up to 2022
- for use in chip-optimized multi-profile cutterheads
- for profiling of soft-wood, hard-wood, veneer and plastic edge bands
Design
- Cutting material: HW
- HL Board 05 for wood-based materials, plastics and hard woods
- 2 different profile combinations on one plate
Advantages
Notes
| Feature | Value | |
|---|---|---|
| R1 = Radius 1 | 2 [mm] | |
| R2 = Radius 2 | 1.3 [mm] | |
| B = Width | 13,13 [mm] | |
| H = Height | 14.5 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 4,7 [mm] | |
| Wedge∡ = Wedge angle | 55 [°] | |
| LEUCODUR = Cutting material | HL Board 05 | |
| PU = Packing unit | 10 [pc.] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
