Selection via tool type

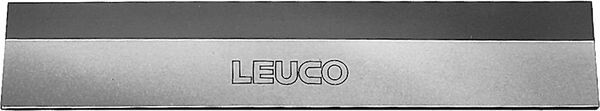

Planing Knives HW

Product

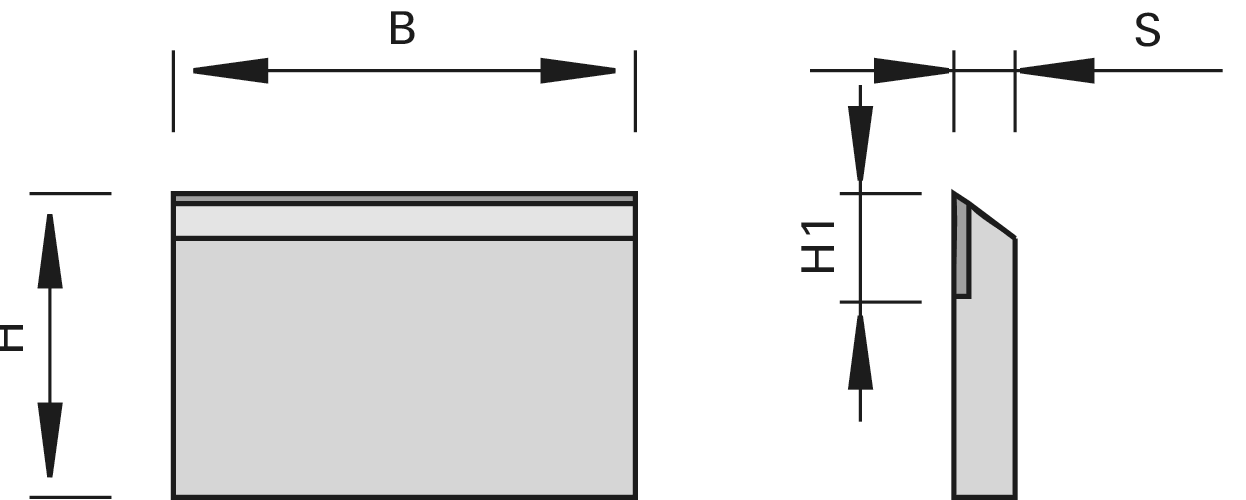

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • for use in planing cutterheads

Design

  • cutting material: HW-tipped for hard woods

Advantages

Notes

  • from safety reasons please always mount knives with equal weight (packing unit VE) opposite each other

Table- and picture caption ...

Dimension
[mm] 		B
[mm] 		H
[mm] 		S
[mm] 		H1
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

60 30 3 11 HW 2 160586
|
80 30 3 11 HW 2 006204
|
100 30 3 11 HW 2 006205
|
110 30 3 11 HW 2 165329
|
120 30 3 11 HW 2 006206
|
130 30 3 11 HW 2 006207
|
150 30 3 11 HW 2 006208
|
170 30 3 11 HW 2 006209
|
180 30 3 11 HW 2 055649
|
210 30 3 11 HW 2 006210
|
230 30 3 11 HW 2 160588
|
240 30 3 11 HW 2 182641
|
260 30 3 11 HW 2 160589
|
310 30 3 11 HW 2 055648
|
310 35 3 11 HW 2 165338
|
320 30 3 11 HW 2 165330
|
320 35 3 11 HW 2 165339
|
330 30 3 11 HW 2 165331
|
330 35 3 11 HW 2 165340
|
360 30 3 11 HW 2 165332
|
360 35 3 11 HW 2 165341
|
400 35 3 11 HW 2 165342
|
410 30 3 11 HW 2 006211
|
410 35 3 11 HW 2 165343
|
450 30 3 11 HW 2 165333
|
450 35 3 11 HW 2 165344
|
460 30 3 11 HW 2 165334
|
460 35 3 11 HW 2 165345
|
500 35 3 11 HW 2 165346
|
510 30 3 11 HW 2 006212
|
510 35 3 11 HW 2 165347
|
600 35 3 11 HW 2 165348
|
610x30x3 610 30 3 11 HW 2 006704
|
610 35 3 11 HW 2 165349
|
630 30 3 11 HW 2 165335
|
630 35 3 11 HW 2 165350
|
635 35 3 11 HW 2 165351
|
640 30 3 11 HW 2 165336
|
640 35 3 11 HW 2 165352
|
700 35 3 11 HW 2 165353
|
710 30 3 11 HW 2 160590
|
710 35 3 11 HW 2 165354
|
740 30 3 11 HW 2 165337
|
740 35 3 11 HW 2 165355
|
810 30 3 11 HW 2 160592
|
810 35 3 11 HW 2 165356
|
