Selection via tool type

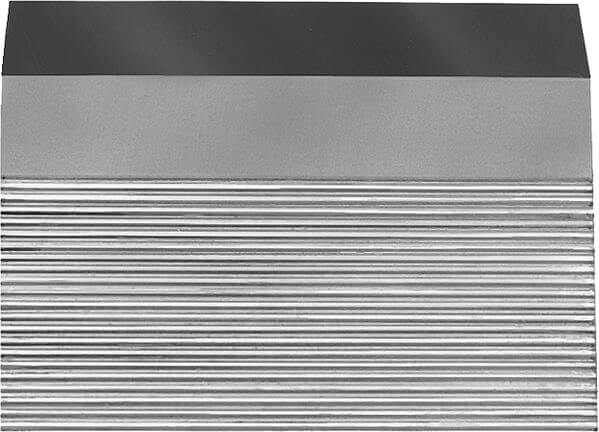

Back-serrated HS blanks for profiling

Product

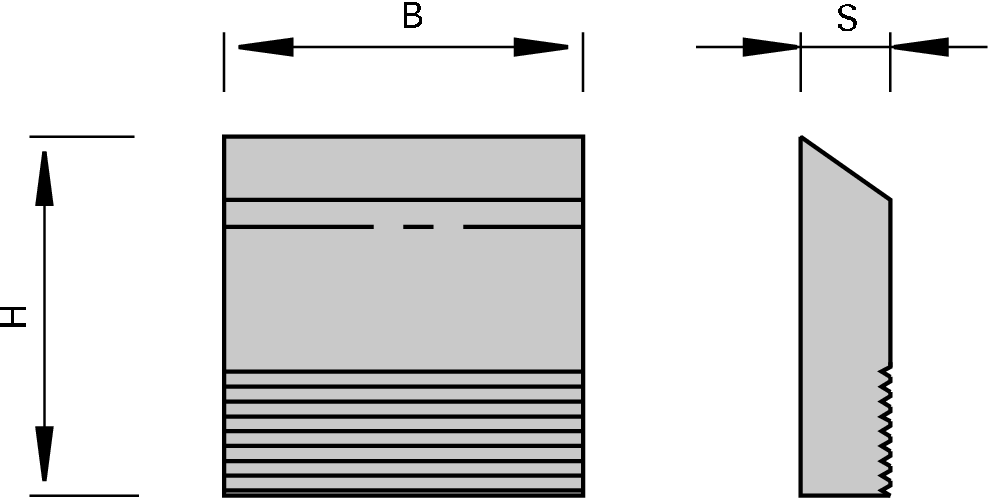

Drawing

  • High Speed Steel [HS]

Article

Description

Machine / Application

  • for use in profile cutterheads with serration

Design

  • cutting material: HS for soft woods

Advantages

Notes

  • T = profile depth
  • from safety reasons please always mount knives and support plates with equal weight (packing unit VE) opposite each other

Table- and picture caption ...

Dimension
[mm] 		B
[mm] 		H
[mm] 		S
[mm] 		Tmax
[mm] 		LEUCODUR PU
[pc.] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

40 50 8 12 HS 2 163385
|
40 60 8 20 HS 2 163386
|
40x70x8 40 70 8 30 HS 2 163387
|
50 50 8 12 HS 2 180533
|
50 60 8 20 HS 2 180534
|
60 50 8 12 HS 2 163388
|
60 60 8 20 HS 2 163389
|
60 70 8 30 HS 2 163390
|
80 50 8 12 HS 2 163391
|
80 60 8 20 HS 2 163392
|
80 70 8 30 HS 2 163393
|
100 50 8 12 HS 2 163394
|
100 60 8 20 HS 2 163395
|
100 70 8 30 HS 2 163396
|
130 50 8 12 HS 2 163397
|
130 60 8 20 HS 2 163398
|
130 70 8 30 HS 2 163399
|
150 50 8 12 HS 2 163400
|
150 60 8 20 HS 2 163401
|
150 70 8 30 HS 2 163402
|
180 50 8 12 HS 2 163403
|
180 60 8 20 HS 2 163404
|
180 70 8 30 HS 2 163405
|
230 50 8 12 HS 2 164495
|
230 60 8 20 HS 2 164496
|
650x50x8 650 50 8 12 HS 1 176318
|
650 60 8 20 HS 1 176319
|
650 70 8 30 HS 1 176320
|
