180218 - SuperProfiler Blanks HW - B=50 mm
Product

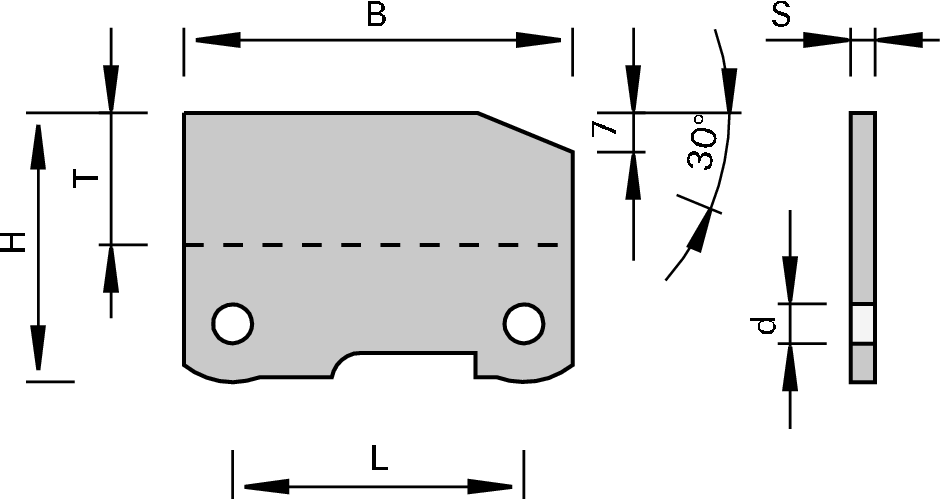

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in LEUCO SuperProfiler cutterheads
Design
- optionally topline (polished face)
- cutting material: HW
- HL Board 06 for wood-based panels, plastics and hard woods
Advantages
- topline design: highest cutting quality and significantly improved cutting edges
Notes
- T = maximum profile depth
| Feature | Value | |
|---|---|---|
| Chamfer∡ = Chamfer angle | 30 [°] | |
| B = Width | 49,4 [mm] | |
| H = Height | 44.5 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 5,0 [mm] | |
| L = Bore distance | 35 [mm] | |
| Tmax = Maximum profile depth | 22 [mm] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
