168826 - Blanks HW - central bore
Product

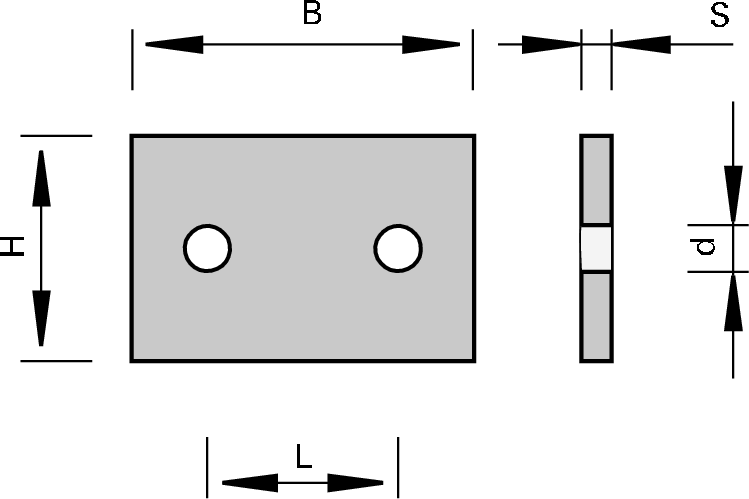

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in profile cutterheads
Design
- width, height, and thickness precision ground
- cutting material: HW
- HL Board 05 for wood-based panels, plastics and hard woods
Advantages
Notes
| Feature | Value | |
|---|---|---|
| B = Width | 42 [mm] | |
| H = Height | 32 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 4,2 [mm] | |
| L = Bore distance | 24 [mm] | |
| LEUCODUR = Cutting material | HL Board 05 | |
| PU = Packing unit | 10 [pc.] | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
