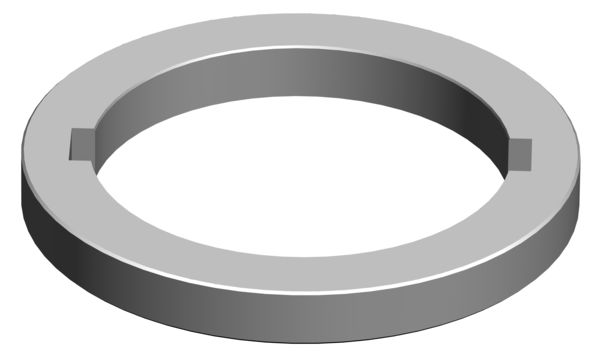

Spacer rings - steel

Product

Drawing

Article

Description

Machine / Application

Design

Advantages

Notes

  • Spacer rings for sawmills
  • Other designs and dimensions on request

Table- and picture caption ...

Dimension
[mm]
Ø D
[mm]
B
[mm]
Ø d
[mm]
MOQ
[pc.]
PU
[pc.]
DKN
[mm]
Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

Ø150x0,5xØ115 150 0,5 115 1 1 29x131 80370453
|
Ø150x1,0xØ115 150 1,0 115 1 1 29x131 80370454
|
Ø190x2,0xØ150 190 2,0 150 1 1 36,3x167 80383237
|
Ø190x3,0xØ150 190 3,0 150 1 1 36,3x167 80383238
|
Ø190x5,0xØ150 190 5,0 150 1 1 36,3x167 80383239
|
Ø190x10,5xØ150 190 10,5 150 1 1 37x170 80387052
|
Ø190x11,5xØ150 190 11,5 150 1 1 37x170 80387053
|
Ø190x12,5xØ150 190 12,5 150 1 1 37x170 80387054
|
Ø190x40,4xØ150 190 40,4 150 1 1 37x170 80387912
|
Ø200x1,0xØ150 200 1,0 150 1 1 37x157,8 80291659
|
Ø200x2,0xØ150 200 2,0 150 1 1 37x157,8 80291660
|
Ø200x3,0xØ150 200 3,0 150 1 1 37x157,8 80291661
|
Ø200x6,8xØ150 200 6,8 150 1 1 37x157,8 80404151
|
Ø200x21,6xØ150 200 21,6 150 1 1 37x157,8 80291663
|
Ø200x31,6xØ150 200 31,6 150 1 1 37x157,8 80291662
|
Ø220x10,4xØ150 220 10,4 150 1 1 37x170 80283020
|
Ø270x10xØ150 270 10 150 1 1 36,3x167 80363407
|
Ø270x30xØ150 270 30 150 1 1 36,5x168 80386011
|
Ø270x150xØ115 270 150 150 1 1 36,3x167 80354756
|
Ø320x10,4xØ150 320 10,4 150 1 1 37x170 80283019
|
