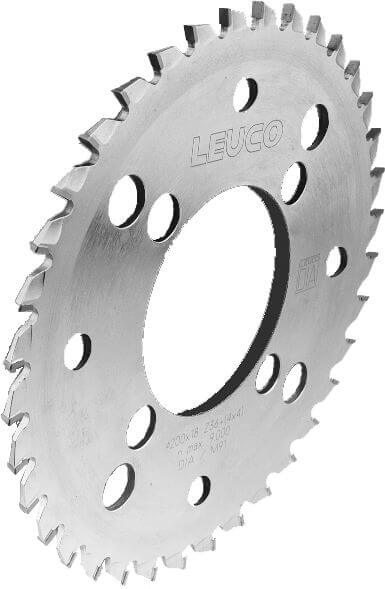

Circular Saw Blades DP for TwinTec Hoggers "ES-FA"
Product
Drawing
-
- Polycrystalline diamond [DP]
Article
Description
Machine / Application
- double end tenoners
- edge trimming machines
- for chip-free sizing of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
Design

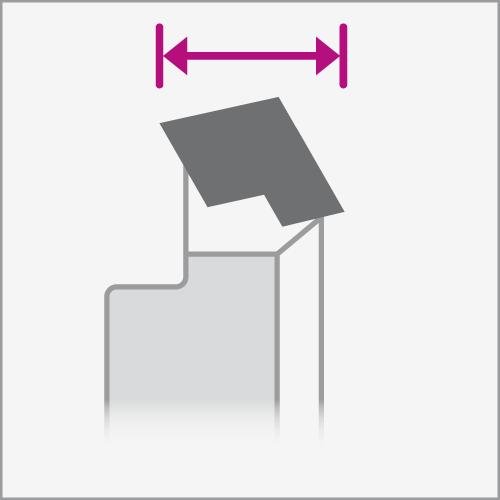

- tooth configuration: top bevel with chamfer and face shear "ES-FA"
- n max = 7,200 min-1

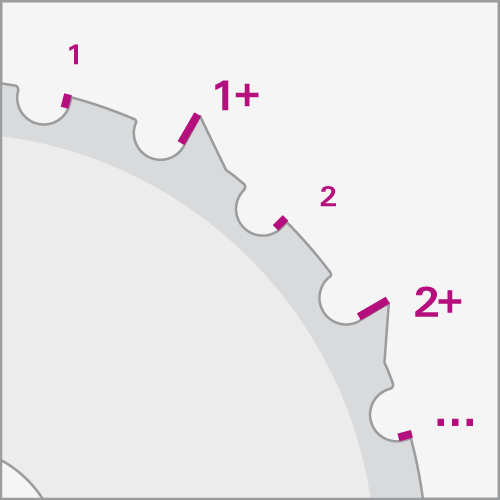

- resharpenable area 4 mm; sides of teeth can be resharpened

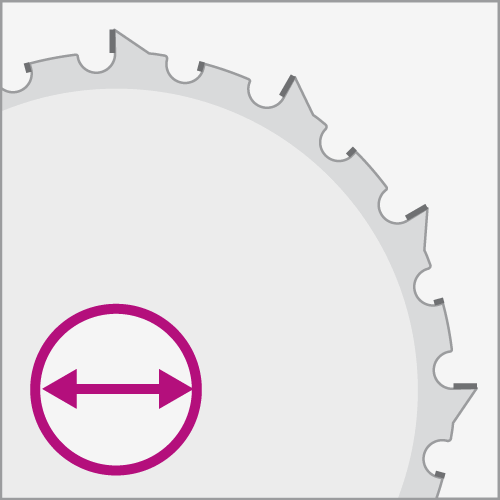

- saw blade with equal tooth pitch
Advantages
- decreased downtimes thanks to long edge lives
Notes
- application with feed
- for scoring/hogging (RZ) and double hogging (DZ) process
- for combination with LEUCO TwinTec hoggers
- the specified feed rates are based on n = 6,000 min-1

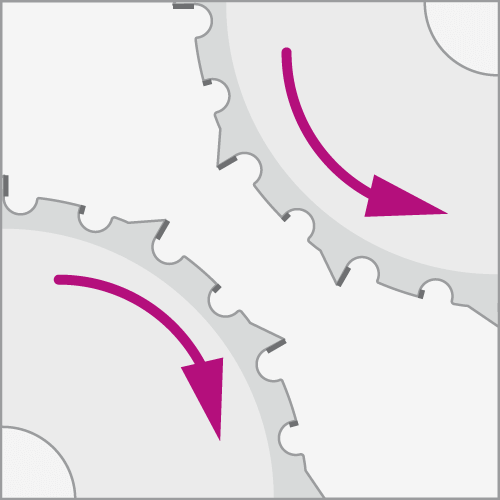

- sense of rotation see drawing
|

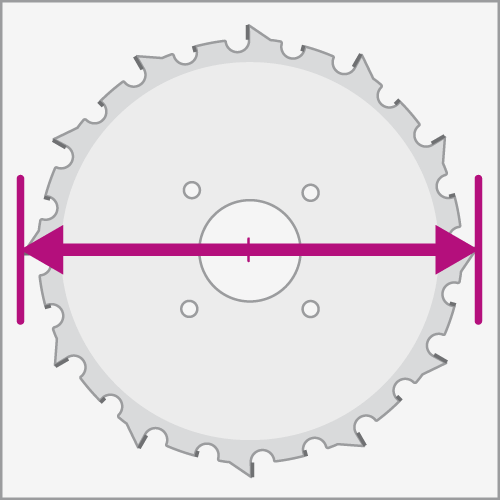

Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | L/R |
nmax
[min-1] |
Feed DZ
[m/min] |
Feed RZ
[m/min] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 220 | 4,0 | 2.8 | 80 | 24 | L | 7,200 | 25 | 15 | 171353 | ||
| 220 | 4,0 | 2.8 | 80 | 24 | R | 7,200 | 25 | 15 | 171354 | ||
| 220 | 4,0 | 2.8 | 80 | 30 | L | 7,200 | 32,5 | 20 | 171355 | ||
| 220 | 4,0 | 2.8 | 80 | 30 | R | 7,200 | 32,5 | 20 | 171356 | ||
| 220 | 4,0 | 2.8 | 80 | 36 | R | 7,200 | 40 | 25 | 171358 | ||
| 220 | 4,0 | 2.8 | 80 | 42 | L | 7,200 | 45 | 27,5 | 171359 | ||
| 220 | 4,0 | 2.8 | 80 | 42 | R | 7,200 | 45 | 27,5 | 171360 | ||
| 220 | 4,0 | 2.8 | 80 | 48 | L | 7,200 | 50 | 30 | 171361 | ||
| 220 | 4,0 | 2.8 | 80 | 48 | R | 7,200 | 50 | 30 | 171362 | ||
| 220 | 4,0 | 2.8 | 80 | 54 | L | 7,200 | 55 | 35 | 171363 | ||
| 220 | 4,0 | 2.8 | 80 | 54 | R | 7,200 | 55 | 35 | 171364 | ||
| 220 | 4,0 | 2.8 | 80 | 60 | L | 7,200 | 60 | 40 | 171365 | ||
| 220 | 4,0 | 2.8 | 80 | 60 | R | 7,200 | 60 | 40 | 171366 | ||
