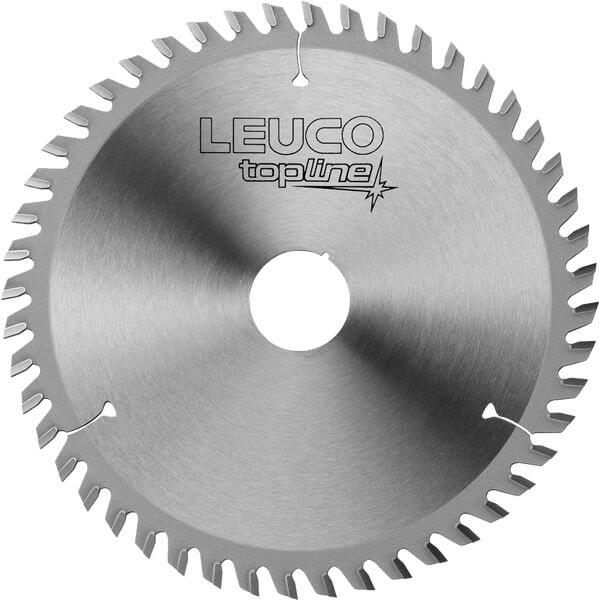

Scoring Saw Blades HW "F" - for hoggers and flange 160849

Product

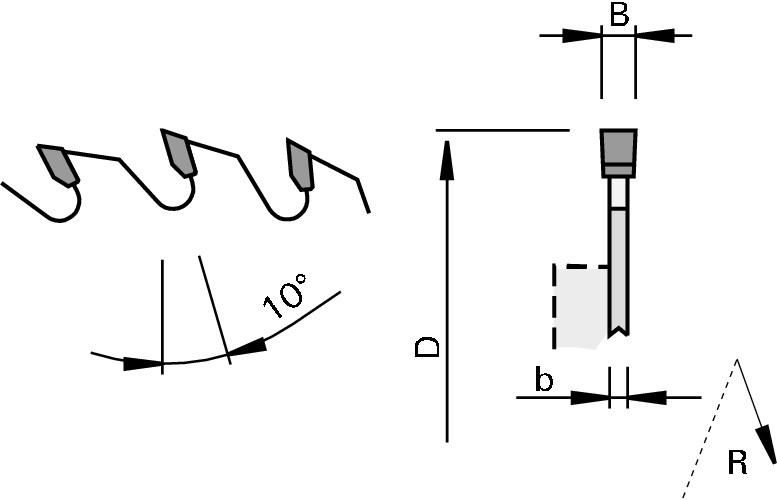

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • double end tenoners with scoring / hogging unit
  • for chip-free scoring of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels

Design

  • tooth configuration: flat "F"
  • cutting material: HW HL Board 06

Advantages

Notes

  • application with feed
  • for flange Ident-No.160849 for LEUCO s-System
  • flanges see chapter "Clamping Systems"
  • included in delivery: saw blade without flange
  • sense of rotation acc. to DIN-EN 50144

Table- and picture caption ...

Ø D
[mm]
B
[mm]
b
[mm]
Ø d
[mm]
Z NL Hook angle
[°]
L/R LEUCODUR Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

180 3,2 2.2 50 36 3/22/80 10 R HL Board 06 188263
|
180 3,2 2.2 50 48 3/22/80 10 R HL Board 06 188264
|
180 3,2 2.2 50 54 3/22/80 10 R HL Board 06 188265
|
200 3,2 2.2 50 42 3/22/80 10 R HL Board 06 188272
|
