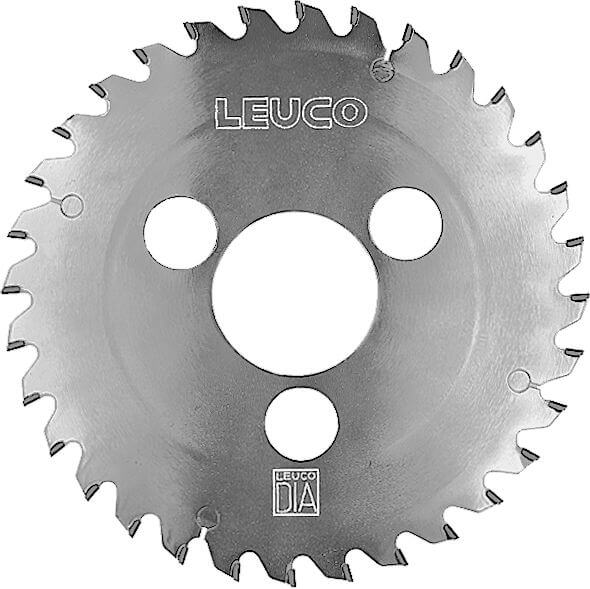

Scoring Saw Blades DP "F-FA" - for hoggers and flange 160849
Product
Drawing
-
- Polycrystalline diamond [DP]
Article
Description
Machine / Application
- double end tenoners
- edge trimming machines
- for chip-free scoring of raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
Design
- tooth configuration: flat with two-sided chamfer "F-FA"
- resharpenable area 4 mm
Advantages
- long edge lives
Notes
- application with feed
- the specified feed rates are based on n = 6,000 min-1
- for flange Ident-No.160849 for LEUCO s-System
|
Ø D
[mm] |
B
[mm] |
b
[mm] |
Ø d
[mm] |
Z | NL |
nmax
[min-1] |
Recommended feed
[m/min] |
Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||
| 180 | 3,2 | 2.2 | 50 | 24 | 3/22/80 | 6,000 | 20 | 168905 | ||
| 180 | 3,2 | 2.2 | 50 | 28 | 3/22/80 | 6,000 | 25 | 168907 | ||
| 180 | 3,2 | 2.2 | 50 | 32 | 3/22/80 | 6,000 | 30 | 168909 | ||
| 180 | 3,2 | 2.2 | 50 | 36 | 3/22/80 | 6,000 | 35 | 169330 | ||
| 180 | 3,2 | 2.2 | 50 | 40 | 3/22/80 | 6,000 | 40 | 169333 | ||
| 180 | 3,2 | 2.2 | 50 | 44 | 3/22/80 | 6,000 | 45 | 169336 | ||
| 180 | 3,2 | 2.2 | 50 | 48 | 3/22/80 | 6,000 | 50 | 169339 | ||
| 200 | 3,2 | 2.2 | 50 | 24 | 3/22/80 | 6,000 | 20 | 169342 | ||
| 200 | 3,2 | 2.2 | 50 | 28 | 3/22/80 | 6,000 | 25 | 169344 | ||
| 200 | 3,2 | 2.2 | 50 | 32 | 3/22/80 | 6,000 | 30 | 169346 | ||
| 200 | 3,2 | 2.2 | 50 | 36 | 3/22/80 | 6,000 | 35 | 169348 | ||
| 200 | 3,2 | 2.2 | 50 | 40 | 3/22/80 | 6,000 | 40 | 169350 | ||
| 200 | 3,2 | 2.2 | 50 | 44 | 3/22/80 | 6,000 | 45 | 169352 | ||
| 200 | 3,2 | 2.2 | 50 | 48 | 3/22/80 | 6,000 | 50 | 169354 | ||
