Scoring Saw Blade Set HW "ES" - for finger joint machines

Product

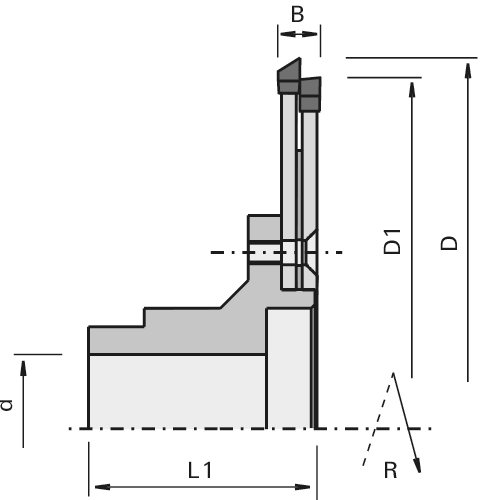

Drawing

  • Tungsten Carbide [HW]

Article

Description

Machine / Application

  • finger jointing lines Grecon Ultra / Profi Joint
  • for scoring of solid woods

Design

  • tooth configuration: top bevel "ES"
  • cutting material: HW HL Board 06

Advantages

Notes

  • along and accross the grain, from below
  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		L/R Cutting quality* Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

200 11,6 40 48+48 12x3,3 R ▲▲▲ Grecon Ultra / Profi Joint 189536
|
